In the unyielding pursuit of innovation and musicality, Yamaha is proud to present its flagship integrated amplifier – the A-S3200. Meticulously designed from the ground up, the A-S3200 realises the ambitions of the artist and establishes a new benchmark in high-fidelity audio.
- High Quality Components delivering exceptional musical expression

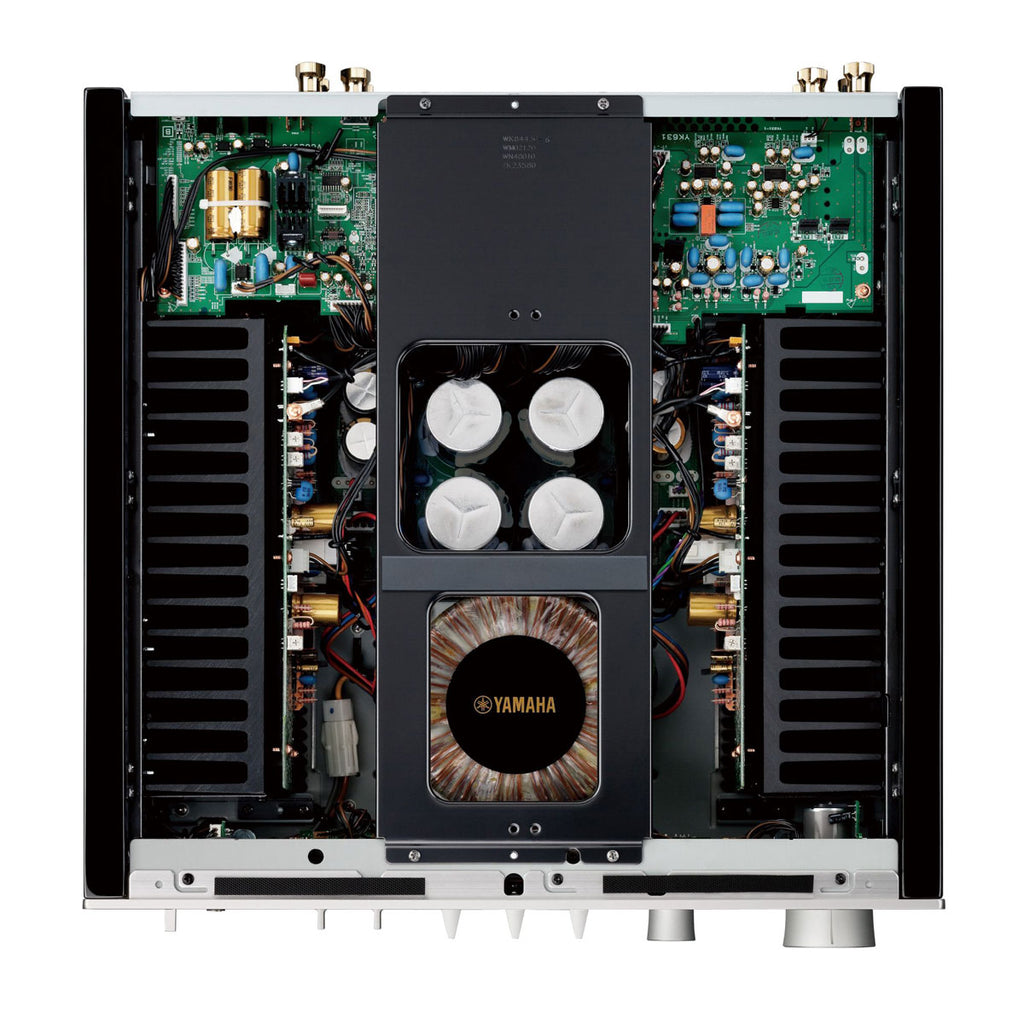

- Toroidal power transformer with enormous energy for a pure musical sound
- Gorgeous level meters convey dynamics and music pulse with a nod to the nostalgic Hi-Fi era
- Floating Balanced Power Amplifier
- Mechanical ground concept maximises rigidity for expressive and rhythmic bass
Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) 160 W + 160 W
High Dynamic Power/Channel (8/6/4/2 ohms) 105/135/190/220 W
Rated Output Power [20 Hz-20 kHz, 0.07% THD] 90 W ＋ 90 W (8 ohms), 150 W ＋ 150 W (4 ohms)
Damping Factor ≧ 250 (1 kHz, 8 ohms)
Frequency Response +0 / -3 dB (5Hz-100kHz) , ＋0 / -0.3 dB(20 Hz-20 kHz)
RIAA Equalization Deviation ＋/-0.5 dB (PHONO (MM/MC))
Total Harmonic Distortion (20Hz to 20kHz) [Input 0.5 V] PHONO MC→LINE2 OUT: 0.02% (1.2 mVrms), PHONO→LINE2 OUT: 0.005% (1.2 Vrms), CD, etc.→SP OUT: 0.035% (50 W/8 ohms）
Signal-to-Noise Ratio PHONO MC: 90 db, PHONO MM: 96 dB, CD, etc.: 110 dB
Input Sensitivity [1 kHz, 100 W/8 ohms] PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms
Transformer 625VA (Toroidal)
Dimensions (W x H x D) 435×157×463 mm; 17-1/8" x 6-1/8" x 18-1/4"
Weight 22.0 kg; 48.5 lbs
