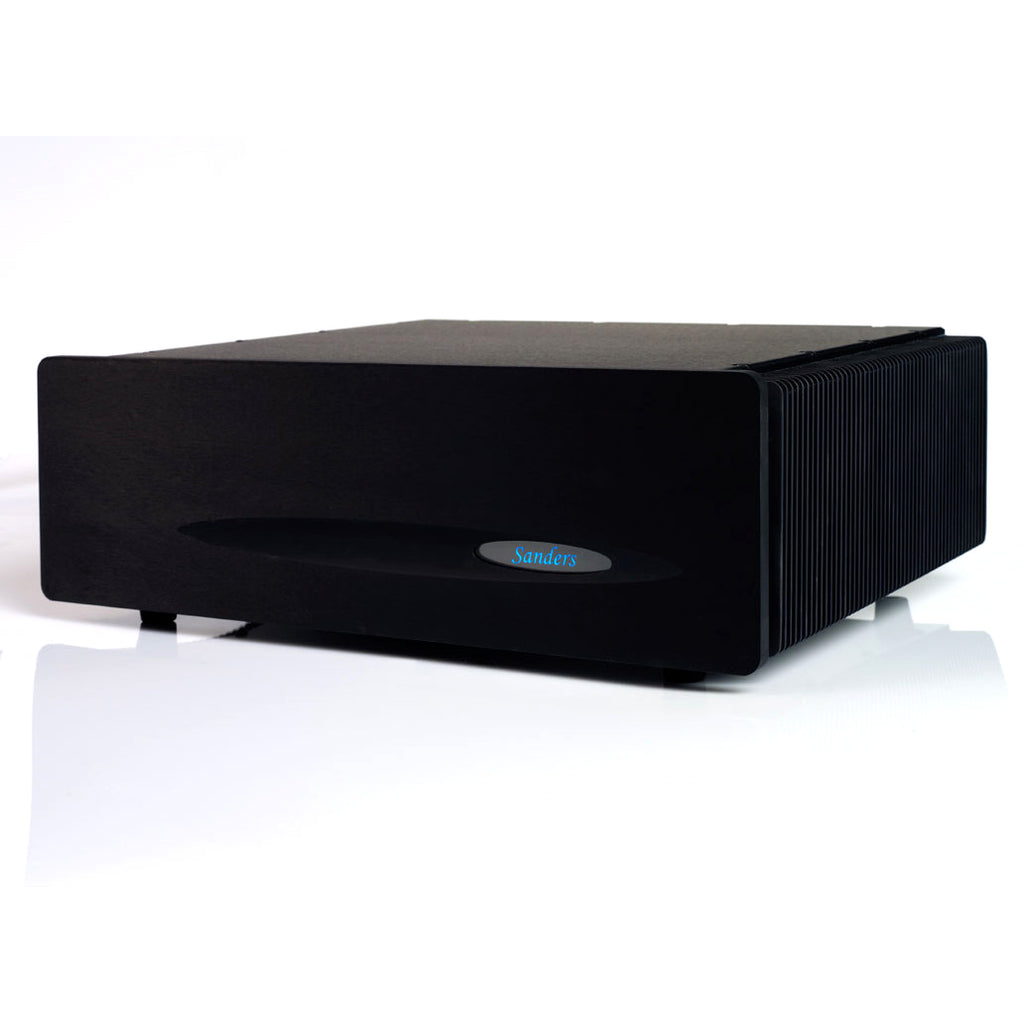

Sanders Sound Magtech


Colour: Black
Price:
$18,900

Description

Weight 25KG each

Dimensions 17" wide x 5.5" tall x 16" deep (43cm x 14cm x 40.6cm)

Power (Monoblock Version) 1600 watts RMS into an 8 ohm load 2000 watts RMS into a 4 ohm load

Bandwidth DC through 100kHz

Class of Operation  Class AB

Slew Rate 500 Volts/microsecond

Input voltage required for full output 2 Volts

Input Impedance 100kohm (both balanced and unbalanced)

Gain 26dB

Noise Nore than 110dB below rated output

Damping Factor Greater than 600 into an 8 ohm load

THD Less than 0.004%, 20 Hz - 20 KHz

Voltage Voltage is user selectable for use world-wide.

IMD Less than 0.003%, 20 Hz - 20 KHz



Roger Sanders has been at this for 40 years. His first published article on Electrostatic Speakers was in 1974, followed by another on amplifiers to drive ESL's in 1976.

His contribution to audio include the invention of the curved, free-standing, electrostatic loudspeaker driver (click on image to right to view the published article); the development of extremely compact transmission line woofer systems; integration of electrostatic speakers and transmission line woofer systems; and, several "how to" construction articles in "The Audio Amateur" and "Speaker Builder" magazines.
