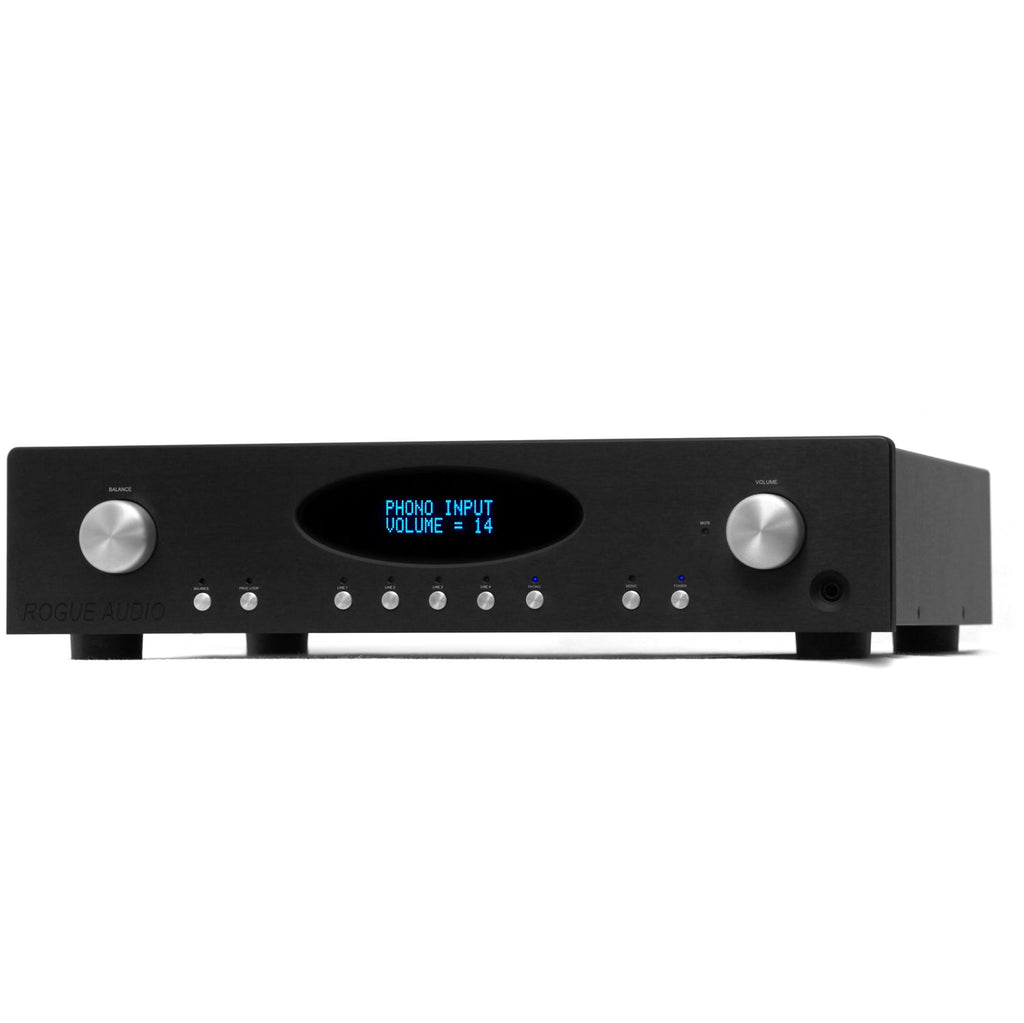

The RP-5 is based on the groundbreaking RP-X platform. Silky smooth yet extraordinarily high tech, the RP-5 sets a new benchmark in performance and functionality. Utilizing four 12AU7 tubes in a mu-follower configuration, the computer optimized circuitry boasts outstanding sonics as well as industry leading specs.
The RP-5 offers much more than just sonic excellence with numerous features to further enhance your listening experience. The onboard MM/MC phono has user adjustable gain settings ranging from 40 to 60 dB. A wide variety of loading options means your favorite cartridge can be configured to sound its very best. A tube based headphone circuit offers smooth and detailed sound for your late night personal audio sessions. Other features include home theater inputs, a processor loop and mono button. The ten button remote allows you to conveniently access volume, balance, selector, mute, mono and on/off from your listening position.

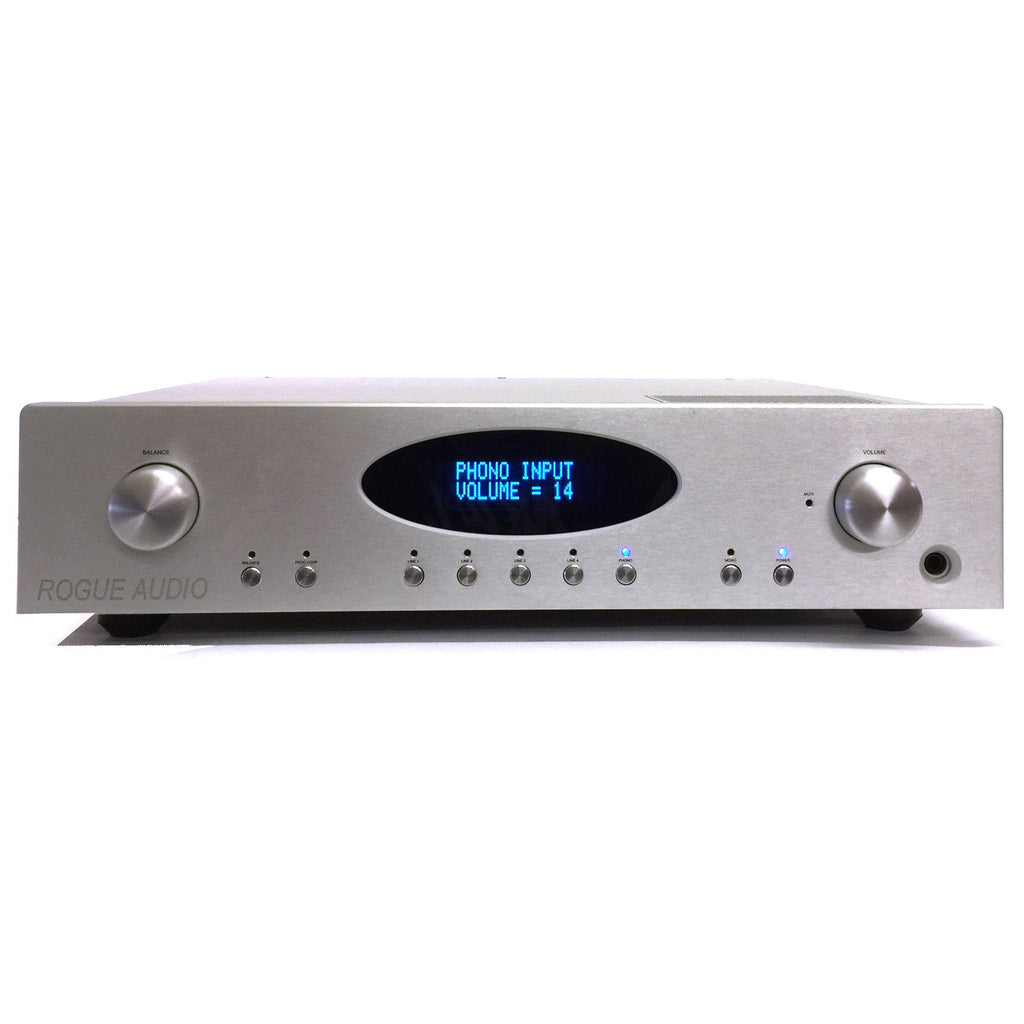

The elegant appearance of the RP-5 is enhanced by an easy to read VFD display that provides volume, balance and source information in large easy to read characters.
- Four tube mu-follower design
- Ten function remote control
- VFD display
- Home Theater bypass/Unity gain inputs

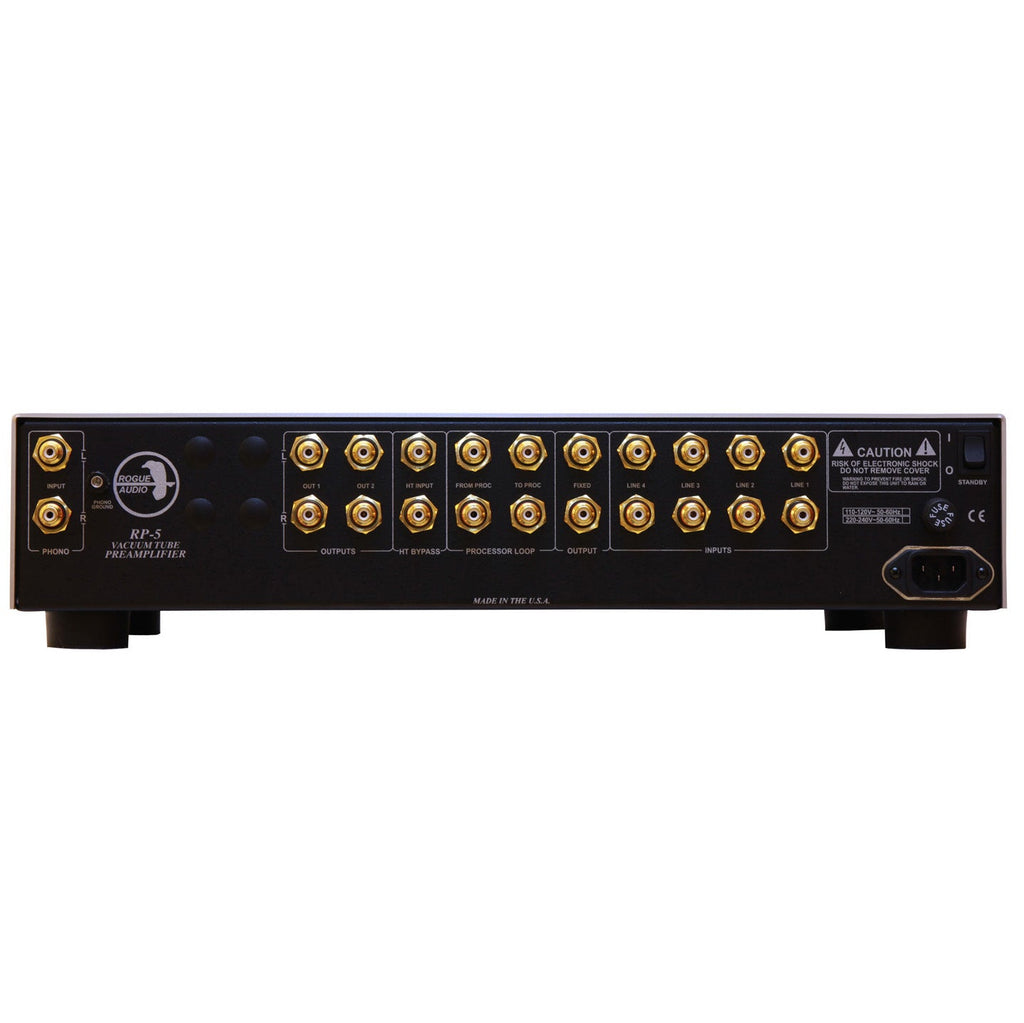

- Five pairs of inputs (Line1-4, Phono, or Line 1-5)
- Two pairs of variable outputs
- One pair of fixed outputs
- Processor loop
- Heavy duty gold plated RCA inputs
- Machined aluminum faceplate and knobs
- Tube based headphone amp
- 40 - 60 dB gain phono stage
- RIAA equalization within 0.1 DB
- User adjustable cartridge loading
- Massive power supply
- Slow start turn on sequencing
- Auto mute at turn on/turn off
- Detachable IEC power cord
- Fully tested, burned in and auditioned
- 3 year limited warranty (6 months on tubes)
- Tube complement: 4 x 12AU7/ECC82 tubes
- Frequency response: 1Hz – 100KHz +/- 1 dB
- THD: <0.1%
- Gain line stage: 10 dB
- Rated output: 1V
- Maximum output: 27V RMS
- Output impedance: 500 Ohms
- Gain phono stage: 40dB, 50dB, 55dB, 60dB
- RIAA accuracy: +/- 0.1 dB
- Dimensions: 18.5 ”W X 4.5 ”H X 17” D
- Weight 30 pounds
- Shipping weight 45 pounds
- Power requirements 115/230V – 50/50H
Our amplifier designs combine the finest in tube circuit topology with meticulously engineered circuit layout to achieve superior performance. Unflagging attention to the integrity of the audio signal path and power supplies results in truly superior designs. The most discriminating audiophile will delight in the impeccable fidelity of recordings reproduced through our amplifiers. The matchless quality of Rogue amplifiers is obvious at first glance. However, Rogue’s quality is not just skin deep. Ultra-high tolerance components, two-ounce copper circuit boards, and silver plated switches are just a few of the many features which separate Rogue products from the competition. Our amplifiers have also been designed to be extremely reliable. Electronic components are rated far beyond their intended use, and only the highest quality components are incorporated into our designs. The rugged chassis are treated to resist scratching and corrosion and the machined aluminum faceplates are anodized to protect their appearance. At Rogue Audio, we believe that a truly great performing amplifier should dress the part. And from the heavy aluminum faceplate and knobs to the gold connectors in the rear, Rogue amplifiers speak to the audiophile’s aesthetic sense. Our expressive appearance is the brainchild of world class industrial designers who have created a perfect unity of form and function. The sophisticated styling and elegant lines of our amplifiers are intended to please the upscale tastes of high-end devotees. High-end amplifiers typically command stratospheric prices. Rogue Audio was founded on the belief that great amplifiers can be designed and manufactured at affordable prices. Our amplifiers are engineered using a quality-by-design philosophy, and every one of our components is hand assembled and tested by highly skilled technicians and engineers. The confidence we have in our products is evidenced by a generous warranty that is certain to please today’s quality-conscious consumer. To audition a Rogue Audio amplifier contact us for the location of your nearest authorized Rogue retailer -- You’ll be delighted you did. Rogue Audio Amplifiers...An Intelligent Indulgence.
The Rogue Audio Mission: At Rogue Audio we design and manufacture vacuum tube amplifiers. There is fierce competition in this market and we will only survive by delivering a superior product and superior service - we have the engineering and managerial talent to do so. Our core competencies are electrical, mechanical and production engineering, along with an overarching passion for excellence. These skills will be used to create products that offer outstanding value in the high-end marketplace. Rogue Audio amplifiers will always be engineered to provide the four key elements of audio value:
- superior sonics - high quality and reliability - an outstanding appearance - great value
Our philosophy is simple - We will never design any amplifier that we would not purchase for ourselves.
