Bringing the groundbreaking RP-X technology platform to the personal audio world.
The RH-5 will deftly drive the most demanding headphones with a clarity, richness and tube smoothness that must be heard to be believed. Beyond its remarkable performance and design, the feature rich RH-5 provides a wide variety of connectivity and user selectable listening options. Ultra quiet, powerful and sublimely musical, the RH-5 offers a superb new option for high end headphone users.
Proudly designed and hand crafted in the USA.

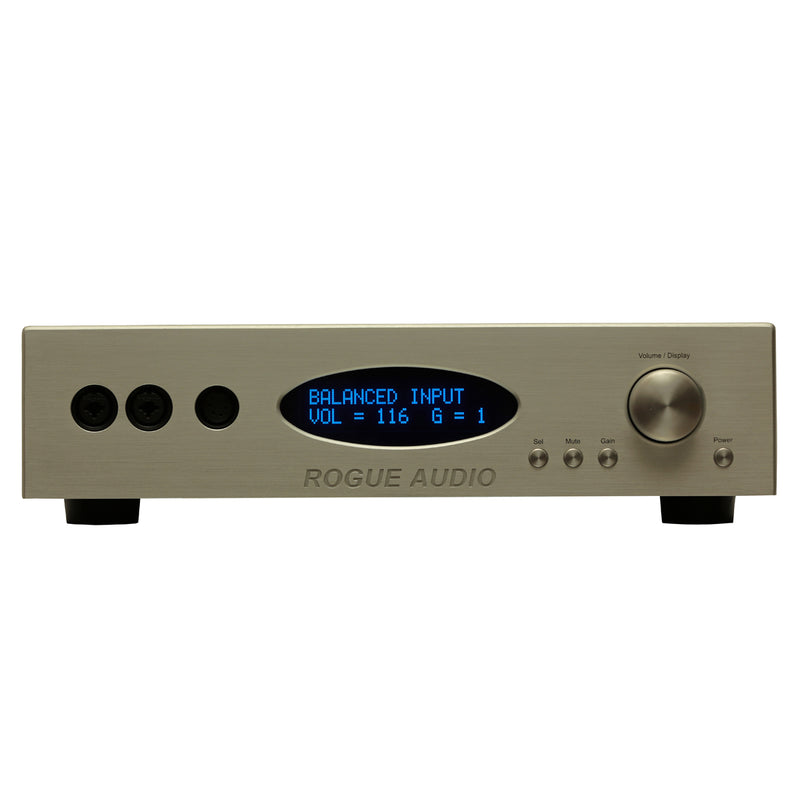

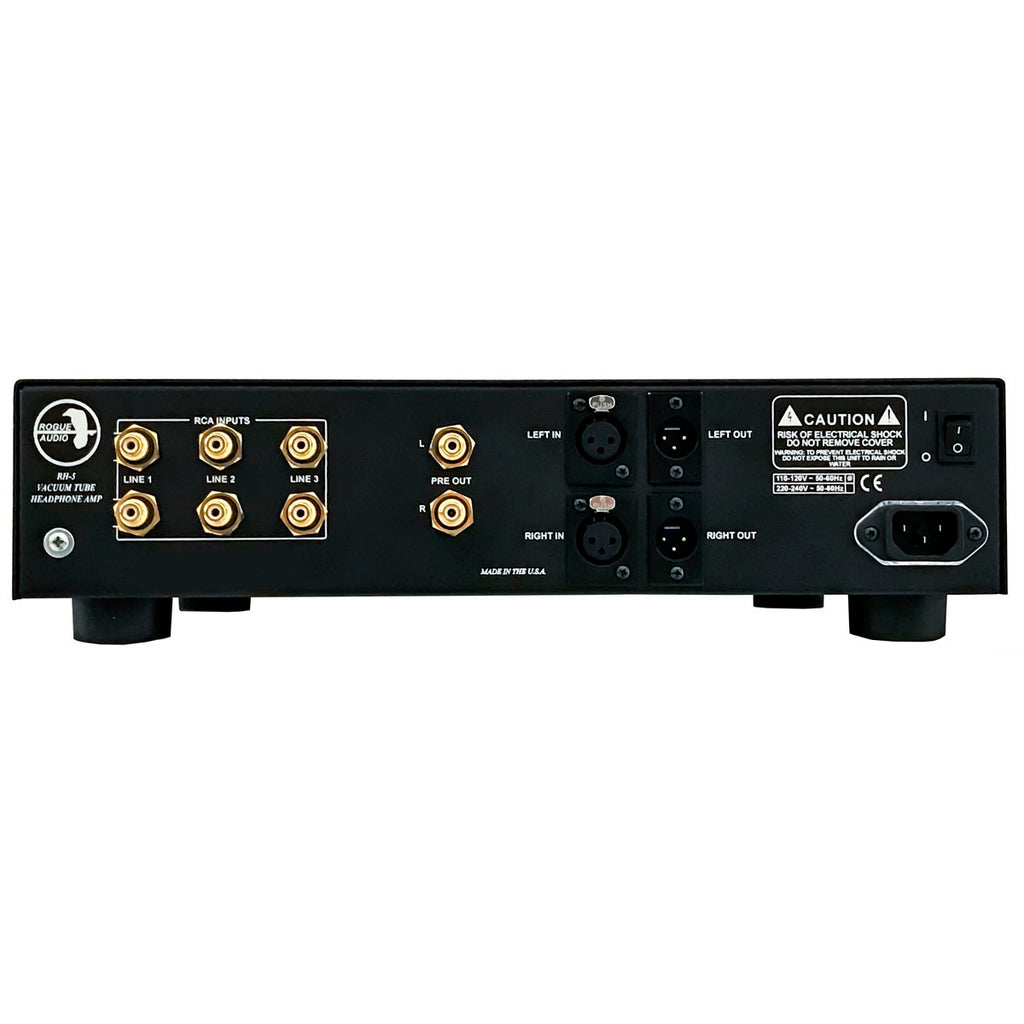

Features include three pairs of RCA inputs and one pair of balanced XLR inputs. Headphone outputs are provided via 3 pin and 4 pin fully balanced outputs as well as two 1/4" TSR headphone jacks enabling a shared listening experience. Three gain settings allow the output to be matched for either high, medium or low sensitivity headphones. An easy to read OLED display elegantly communicates component settings and volume. The display can also be turned off if desired. The seven button remote allows you to turn on the RH-5, change volume, select source and mute output as well as dim the display.
The RH-5 is not just a superb headphone amplifier, it can also be used as the cornerstone of your two channel audio system. Offering both balanced and single ended preamplifier outputs, the RH-5 will also do a wonderful job of driving your preferred amplifier and speakers. An optional phono board also allows you to play your favourite records through either the headphones or loudspeakers. The onboard MM/MC phono has user adjustable gain settings of 43 and 58 dB to accommodate most popular cartridges. A wide variety of loading options also means your favourite cartridge can be configured to sound its very best.
- Two tube mu-follower design
- High current MOSFET buffered outputs
- L/R 3 pin XLR headphone outputs
- 4 pin XLR headphone outputs
- Two 1/4" TSR headphone jacks
- Multi function remote control
- Three faceplate accessible gain settings
- Three pairs of RCA inputs
- Slow start turn on sequencing
- One pair of balanced XLR inputs
- One pair of balanced XLR preamp outputs
- One pair of RCA preamp outputs
- Gold plated RCA jacks
- Machined aluminum faceplate and knobs
- OLED display with on/off
- 43/58 dB MM/MC phono stage (optional)
- RIAA equalization within 0.1 DB
- User adjustable cartridge loading
- Detachable IEC power cord
- Fully tested, burned in and auditioned
- 3 year limited warranty (6 months on tubes)
- Tube complement: 2 x 12AU7/ECC82 tubes
- Frequency response: 5Hz – 50KHz +/- 1 dB
- THD: <0.05%
- Gain line stage: 3dB/12dB/16dB (selectable)
- Rated output: 3.5W (32Ω)
- Output impedance: <0.1Ω (1KHz)
- Gain phono stage: 43dB, 58dB
- RIAA accuracy: +/- 0.1 dB
- Phono overload: 40mV
- Power consumption on: 31W
- Dimensions: 15”W X 13.5 ”D X 4” H
- Weight 19 pounds
- Shipping weight 25 pounds
- Power requirements 115V – 50/60Hz
- Power requirements 220/230/240V – 50/60H
Our amplifier designs combine the finest in tube circuit topology with meticulously engineered circuit layout to achieve superior performance. Unflagging attention to the integrity of the audio signal path and power supplies results in truly superior designs. The most discriminating audiophile will delight in the impeccable fidelity of recordings reproduced through our amplifiers. The matchless quality of Rogue amplifiers is obvious at first glance. However, Rogue’s quality is not just skin deep. Ultra-high tolerance components, two-ounce copper circuit boards, and silver plated switches are just a few of the many features which separate Rogue products from the competition. Our amplifiers have also been designed to be extremely reliable. Electronic components are rated far beyond their intended use, and only the highest quality components are incorporated into our designs. The rugged chassis are treated to resist scratching and corrosion and the machined aluminum faceplates are anodized to protect their appearance. At Rogue Audio, we believe that a truly great performing amplifier should dress the part. And from the heavy aluminum faceplate and knobs to the gold connectors in the rear, Rogue amplifiers speak to the audiophile’s aesthetic sense. Our expressive appearance is the brainchild of world class industrial designers who have created a perfect unity of form and function. The sophisticated styling and elegant lines of our amplifiers are intended to please the upscale tastes of high-end devotees. High-end amplifiers typically command stratospheric prices. Rogue Audio was founded on the belief that great amplifiers can be designed and manufactured at affordable prices. Our amplifiers are engineered using a quality-by-design philosophy, and every one of our components is hand assembled and tested by highly skilled technicians and engineers. The confidence we have in our products is evidenced by a generous warranty that is certain to please today’s quality-conscious consumer. To audition a Rogue Audio amplifier contact us for the location of your nearest authorized Rogue retailer -- You’ll be delighted you did. Rogue Audio Amplifiers...An Intelligent Indulgence.
The Rogue Audio Mission: At Rogue Audio we design and manufacture vacuum tube amplifiers. There is fierce competition in this market and we will only survive by delivering a superior product and superior service - we have the engineering and managerial talent to do so. Our core competencies are electrical, mechanical and production engineering, along with an overarching passion for excellence. These skills will be used to create products that offer outstanding value in the high-end marketplace. Rogue Audio amplifiers will always be engineered to provide the four key elements of audio value:
- superior sonics - high quality and reliability - an outstanding appearance - great value
Our philosophy is simple - We will never design any amplifier that we would not purchase for ourselves.
