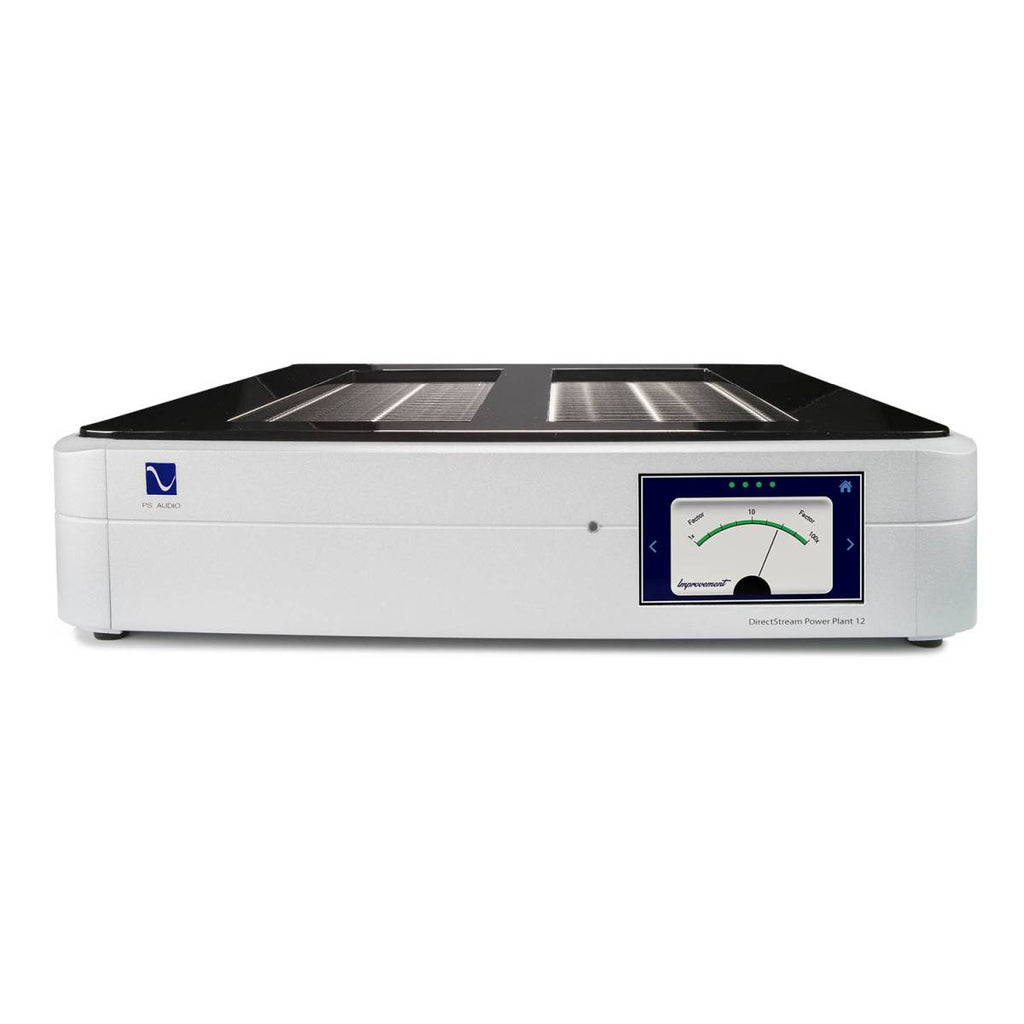

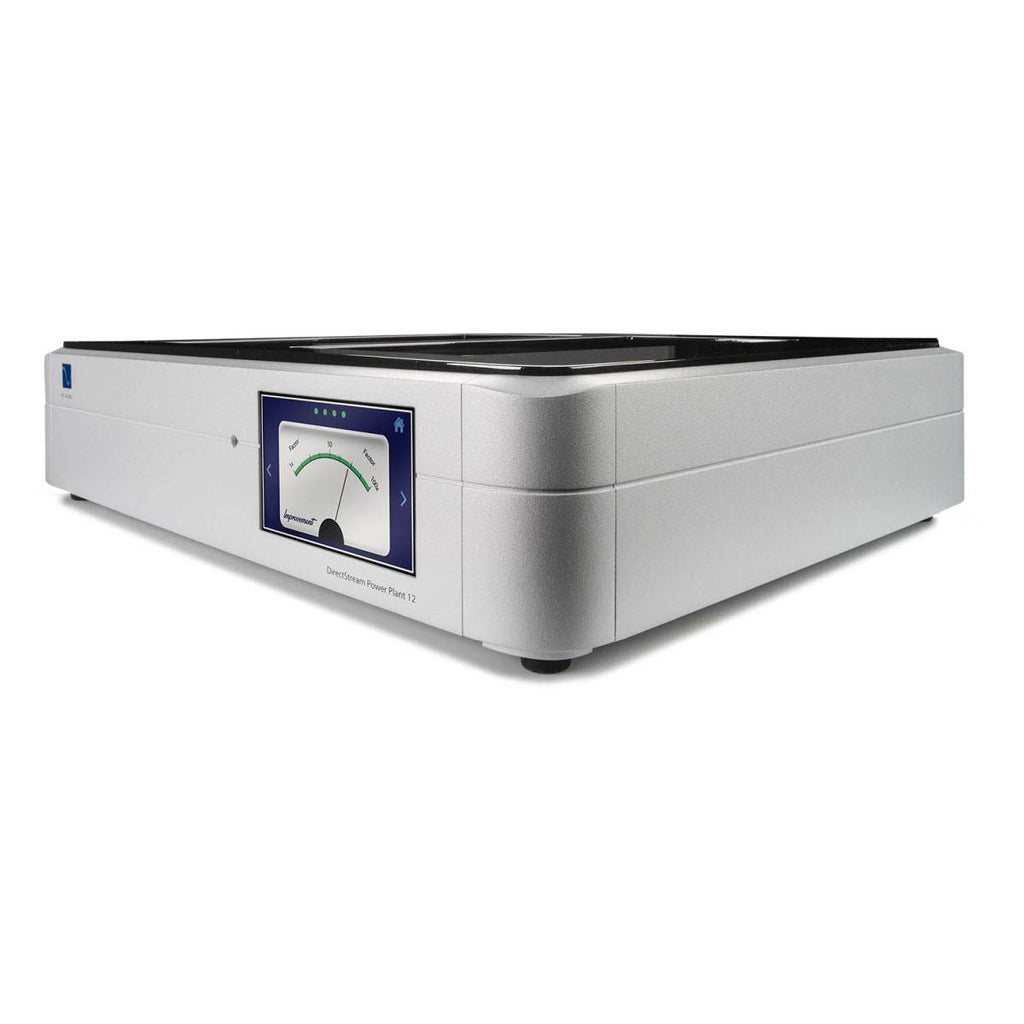

PS Audio DirectStream P12

Save $1,799

Colour: Silver
Price:
$7,196 $8,995

Description

  • Built in Boulder, Colorado, USA
  • 1200 VA output
  • 3X lower impedance than P5

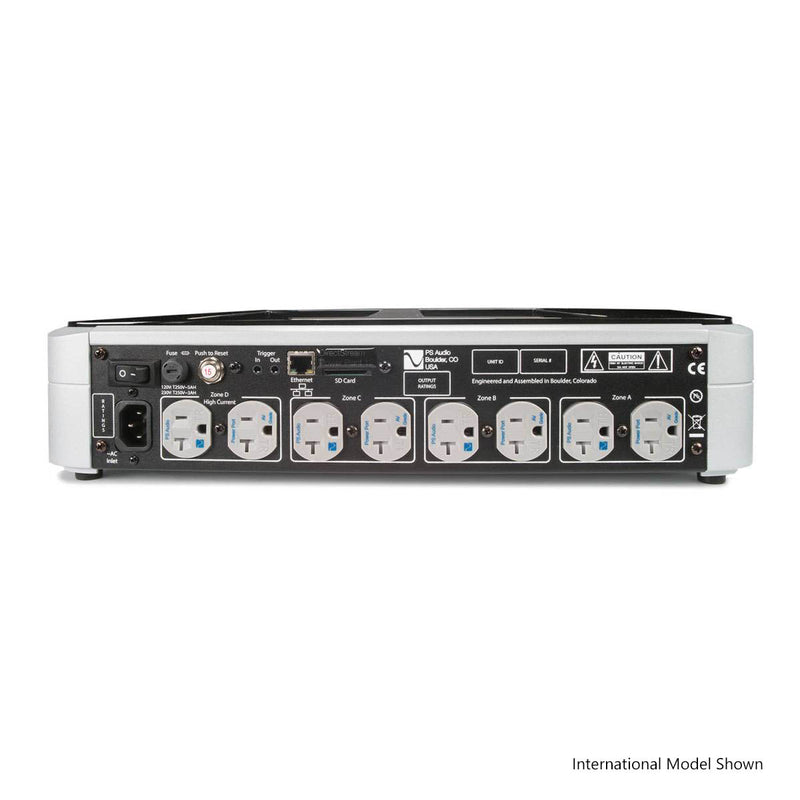

  • 4 AU outlets
  • 10 amp AC input AU
  • 230 volt Regulated AU
  • Range 200 –285VAC AU
  • 100% regenerated AC
  • 4 outlets
  • MultiWave
  • Pure Sine Wave
  • Integrated oscilloscope
  • THD meter
  • Improvement meter
  • Power meter
  • Control over the web
  • Adjustable output voltage
  • Color touchscreen
  • Field upgradable

Environment:

Location: Indoor Use Only
Duty Cycle: Suitable for continuous operation
Moisture Sensitivity: No sealed against moisture
Operating Humidity: <80% rh
Storage Temperature: -40 C to +40 C
Operating Temperature: 0 C to 40 C
Max Operating Altitude: 3500 m (12000 ft)
Electrical Supply Nominal Rating: 230 V 10 A 50/60 Hz

Instrument:

Unit Dimensions: 43 x 36 x 10.16 cm (WxDxH)
Unit Weight: 16.7 kg
Shipping Dimensions: 61 x 53 x 25 cm (WxDxH)
Shipping Weight: 21.7 kg
Nominal Input Voltage: 200 – 285 V AC
Maximum Continuous Load: 1500 VA
Maximum Peak Load: 3800 VA
Voltage Regulation: 1 V
Output Distortion (Resistive Load): < 0.9>#br###Output Distortion (Reactive Load): < 0.9%; 0.1% typical
Output Impedance: < 0.008 Ohm
Noise Reduction: 100 kHz – 2 MHz >80 dB
Efficiency: > 85% (at 1200 VA)
Input Frequency: 45 – 65 Hz
Under Voltage: Continuous – 10% of setting 15 sec duration – 15% of setting
Over Voltage: Continuous – 5% of setting 15 sec duration 10% of setting
Energy Dissipation: 1270 J
Peak Current Surge: 90000 A
Max Surge Voltage: 6000 V
Clamp Level: 800 V
DC Trigger Configuration: Tip Positive
DC Trigger Voltage: 5 – 15 V DC
