Description
Features
Network Audio Streaming: Yes
Spotify Connect* / Tidal* / Deezer* / others *: Yes / Yes / Yes / Yes
Amazon Prime Music* / Pandora*: Yes / Yes
AirPlay 2: Yes
Roon Tested: Yes
Internet radio: TuneIn
HEOS Multiroom and Streaming: Yes
Voice Control - Works with Amazon Alexa: Yes
Voice Control - Microphone built-in: -
CD Compatibility: CD / CD-R/RW / SA-CD / WMA / MP3 / AAC: Yes / Yes / - / Yes / Yes / -
CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta data: - / - / Yes / Yes / -
Data Disc Compatibility: DSD / WAV / ALAC: - / - / -
USB input for memory stick: Yes
DAC Master Clock Design: Yes
DAC operation mode: USB-B / Coax / Optical: Yes / Yes / Yes
Asynchronous mode rear USB-B: Yes
Bit-perfect transmission: Yes
USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 / DSD11.2: Yes / Yes / Yes
Signal isolator for DAC Mode operation: Yes
HDAM version: HDAM + HDAM SA2
Power Transformer: Toroidal / El: Yes / -
High Grade Audio Components: Yes
Customised Components: Yes
Symmetric circuit layout: Yes
Extra metal plate for chassis strengthening: Yes (double layer, 1mm x 2)
Digital out off / Audio EX Mode: Yes / -
Headphone: Standard / Buffer / Current feedback: - / - / Yes (HDAM SA2)
Network
Wi-Fi / Wired LAN 2.4 GHz, 5 GHz / Yes
Wi-Fi on / off mode Yes
Bluetooth on / off mode Yes
DSD Audio Streaming up to DSD11.2
up to PCM384 kHz (Update)
Lossy formats: MP3 / WMA / AAC Yes / Yes / Yes
Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 Yes / Yes / Yes / Yes
Gapless Playback Yes (FLAC, WAV, DSD)
Remote APP: iDevice / Android Yes / Yes
App control AMP/CD via Network Player Yes
Others
Selectable filter: CD / SA-CD / DAC-Mode Yes / - / Yes (PCM Only)
Separated rectifier circuit for analogue and digital circuitry Yes
Display Dimmer: / Off Yes / Yes
Display: 3 line OLED
Playback
Program Play (CD / SA-CD): 25 / -
Repeat: Yes
Random Play: Yes

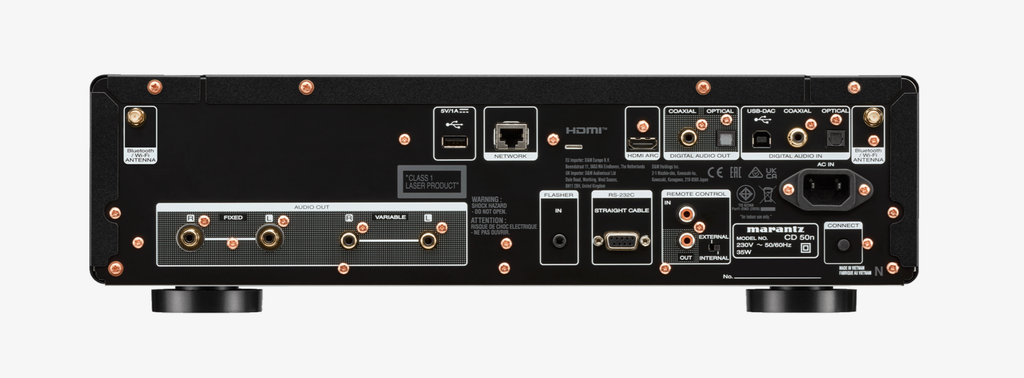

Inputs/Outputs
Analogue Out (RCA): 1
Variable Out (RCA): 1
Balanced Out: -
HDMI: ARC input for TV: Yes
Digital Optical In / Out: 1 / 1
Digital Coaxial In / Out: 1 / 1
Sample Rate digital In: 192 kHz / 24-bit
Gold Plated Cinch: Yes
USB Audio rear
USB type B input for PC (rear): Yes
Sample Rate USB type B In: up to DSD11.2 and PCM 384 kHz
D-Bus: Yes
Remote Control Bus in / out: -
Headphone Out: Yes
Headphone Volume Control: Yes
Bluetooth / Bluetooth HP transmission: Yes / Yes (Update)
Ethernet port: Yes
IP control: Yes
Flasher Input: Yes
RS232: Yes
Specifications
Mechanism: JTL-101YP
D/A Conversion: ESS Hyper Stream
DAC IC: ES9038
Digital Filter: ES9038
Noise Shaper: ES9038
Low Pass Filter stage: HDAM
Output Buffer: HDAM SA2
Headphone amp: HDAM SA2
Frequency Response: 2 Hz–20 kHz
Dynamic Range: 100 dB
Signal to Noise Ratio: 112 dB
Total Harmonic Distortion: 0.000016
Channel separation: 105 dB
General
Available colours: Black or Silver-Gold
Metal Front Panel: Yes
Remote Control: RC003PMND
Power Consumption in W: 35
Standby Consumption in W: 0.3
Auto Power off: Yes
Detachable Power Cable: Yes
Maximum Dimensions (W x D x H) in mm: 442 x 424 x 130
Weight in kg: 10.3
