After years of development on the popular debut DMP-A6, Eversolo have returned with some refinements for the all new DMP-A6 Gen 2. Among the upgrades are a new linear power supply, a new HDMI port for HDMI ARC support - in addition to the existing DSD multi-channel output HDMI port, plus Wake-on-LAN and a dedicated 3.5mm 12v trigger jack.
Gen 2 Upgrades
• Ultra-low-noise (40uV) linear power supply: for crystal-clear audio.
• HDMI ARC support: for seamless integration with home theatre systems.
• Wake-on-LAN (WOL): for remote control anytime, anywhere.
• 12v Trigger out: for synchronised on/off with connected devices.
Hi-Fi Music Streamer that Combines Exceptional Sound Quality with Futuristic Technology
After years of development on the popular debut DMP-A6, Eversolo have returned with some refinements for the all new DMP-A6 Gen 2. Among the upgrades are a new linear power supply, a new HDMI port for HDMI ARC support - in addition to the existing DSD multi-channel output HDMI port, plus Wake-on-LAN and a dedicated 3.5mm 12v trigger jack.
Other amazing features of the original DMP-A6 remain, such as a quad-core processor and large built-in memory, rich digital input and output ports, Eversolo's EOS audio engine developed in-house, globally bypassing SRC restrictions, HDMI DSD multi-channel output, dual ESS 9038Q2M professional DACs, 6" large LCD colour touchscreen, a fully balanced differential circuit and professional audio tuning.
Gen 2 Upgrades:
• Ultra-low-noise (40uV) linear power supply: for crystal-clear audio.
• HDMI ARC support: for seamless integration with home theatre systems.
• Wake-on-LAN (WOL): for remote control anytime, anywhere.
• 12v Trigger out: for synchronised on/off with connected devices.
Key Features:
• NEW! Room Correction via external mic or smartphone
• NEW! FIR Filter EQ Setting supports EDRC or third-party calibration
• 3rd generation XMOS XU316 16-core audio processor
• Quad-core ARM Cortex-A55 professional processor
• 6" large LCD colour touchscreen
• 4GB DDR4 + 32GB eMMC memory for running applications smoothly
• Slot for M.2 NVME 3.0 SSD up to 4TB (not included)
• 2x ES 9038Q2M DACs for independent high-res stereo audio decoding
• EOS audio engine developed by Eversolo, globally bypassing SRC restrictions
• EVC Output Engine: precisely eliminates volume errors at different gain levels
• Supports DSD512 Native, PCM768kHz/32Bit, MQA full decoding
• Supports both HDMI ARC & HDMI DSD Native and D2P multi-channel output
• Dual-band 2.4GHz + 5GHz WiFi & Ethernet connection
• Qualcomm QCC5125 Bluetooth 5.0 module
• Low-jitter dual clock synchronous processing with higher accuracy
• Fully balanced circuit, XLR balanced and RCA single-ended hi-fi analogue pre-outs
• High-quality ultra low-noise linear power supply
• Support 2-channel and Multi-channel Gapless playback (FLAC, WAV)
• Personalised music management, lyric matching and music data matching
• Support Direct audio in 3rd party apps (Apple Music hi-res direct output)
• Full decoding and rendering support for MQA on Optical, Coaxial and USB inputs
• Support USB, Optical, Coaxial, and HDMI digital audio bit-perfect output
• Supports external USB optical drive for CD disc playback and ripping
• Music services include Tidal, Qobuz, Highresaudio, Amazon Music, and more
• Supports Roon Ready, Tidal Connect, DLNA and more
• Supports NFS, SMB, Web DAV, and UPnP protocols to access LAN storage devices
• Supports built-in SMB network media sharing service for easy local media sharing
• Exclusive mobile app for Android/iOS smartphones and tablets
• Solid aluminium alloy brushed panel chassis
User Manual (PDF, 8.09MB)
Eversolo Software Update
Eversolo's latest software update unlocks Room Correction and adds FIR Filter EQ Setting supporting EDRC or third-party calibration software.
Room Correction
Use a high-precision measurement miscrophone or your smartphone microphone to automatically analyise and adjust sound frequency bands through complex algorithms to eliminate or reduce acoustic issues caused by the room environment.
New FIR Filter EQ Setting
Flexible adjustment of audio frequency response. Supports EDRC or third-party calibration software to achieve more accurate sound reproduction.
Exceptional Sound Quality with Futuristic Technology
The Eversolo DMP-A6 Gen 2 is a Hi-Fi streamer that seamlessly blends exceptional sound quality with cutting-edge technology. It is more than just an audio device; it is a new way to connect with the world of music. From hardware design to audio processing, every detail of the DMP-A6 Gen 2 has been meticulously crafted for audiophiles who seek the ultimate listening experience. It not only meets your listening needs but also transforms each musical journey into a marvellous artistic exploration.

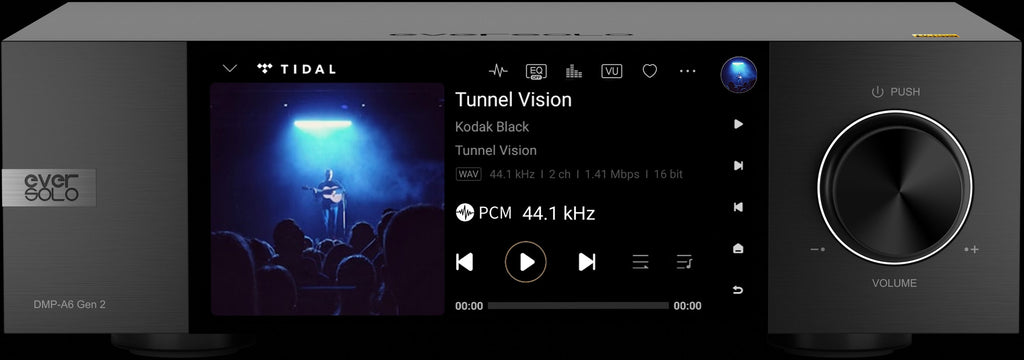

Large Touchscreen
The large touch display combines convenience with beauty. High resolution makes playback information and controls clear at a glance. Whether browsing your music library or adjusting settings, everything is intuitive and smooth.
Full-Aluminium Build
The unit is constructed from integrated aerospace-grade aluminium, processed with precise CNC techniques. The sturdy yet elegant aluminium appearance enhances durability while effectively shielding external interference, ensuring pure audio signal transmission. The refined matte texture adds a touch of luxury, transforming every interaction into an exquisite sensory experience.
Ultra-Low Noise Audio Linear Power Supply
The newly upgraded linear power supply operates with a noise level below 40uV, achieving industry-leading low-noise standards. It delivers a cleaner, more stable power source to the audio circuit, ensuring that signal transmission remains free from power noise interference and allowing for the authentic reproduction of every musical detail.
Fully Balanced Circuit Architecture
The fully balanced design from decoding to output, paired with XLR balanced and RCA unbalanced interfaces, delivers lower distortion and a greater dynamic range. Whether connecting power amplifiers or an active speaker, the DMP-A6 Gen 2 ensures more detailed and accurate sound expression.
Dual ES9038Q2M High-Fidelity DAC Chips
Two high-performance DAC chips independently process the left and right channels, providing amazing dynamic range and detailed resolution. Even complex symphonies are clearly rendered, faithfully reproducing the soundstage and atmosphere of the live recording.
Third-Generation XMOS XU316 Audio Interface
The upgraded XMOS chip offers significantly enhanced processing power, supporting DSD512 Native and PCM 768kHz@32Bit decoding, ensuring high-resolution audio is delivered in its native quality, making every note rich and captivating.
Low-Jitter Dual Clock Synchronization Management
High-precision clock oscillators, combined with optimized algorithms, minimise jitter to the lowest levels, ensuring stability and purity of audio performance.
Eversolo Self-Developed EOS Audio Engine
The innovative audio processing engine bypasses SRC limitations, providing original high-fidelity sound quality. Whether playing local music or streaming from third-party apps (like Apple Music), it ensures the best resolution playback.
EVC Output Engine
The EVC engine uses a unique volume adjustment algorithm to precisely eliminate errors at different gain levels, ensuring that while adjusting the volume, the signal shape remains unchanged, thus providing the back-end DAC with more complete audio information.
Different Music, Different Styles
Full Music Format Dynamic VU Meters and Spectrums
Supports Various Master Formats
The DMP-A6 Gen 2 supports a wide range of high-fidelity music formats, including DSD, MQA, FLAC, APE, and WAV, meeting the diverse needs of hi-res audio enthusiasts. From classical to electronic, you can always experience music that’s as pure as the original master recording.
Create Your Personalised Music Library
The DMP-A6 Gen 2 not only boasts powerful playback and decoding capabilities but also supports cross-platform addition of music files from local drives or network storage. It automatically categorises and displays information such as artists, composers, albums, genre, sample rate and so on, while also supporting functions like quick searches, creating a dedicated music library just for you (music files need to contain ID3 metadata).
Rich Streaming Music Services
With deep system integration, easily access Eversolo's customized TIDAL, Qobuz, Highresaudio, Presto Music, Radio Paradise, and other mainstream streaming services. Satisfy all your musical exploration needs and manage your library effortlessly. Support for numerous third party APPs, high resolution audio Direct output using the original EOS engine.
Cross-service Hybrid Play Queues and Playlists
With multiple integrated music services, you can easily customize your own cross-service hybrid playlists and queues. Whether it’s cherished tracks from different platforms or a blend of various music styles, the DMP-A6 Gen 2 can smoothly integrate them all.
Roon Ready & Tidal Connect
Seamlessly supports Roon and TIDAL Connect, integrating your digital music ecosystem and optimizing streaming experience. With just a tap on the screen or through a mobile app, you can easily switch devices and immerse yourself in music anytime.
Global Music Collection
The cross-platform global music collection integrates favourites from various online music platforms. Through smart categorisation and search, finding your favourite tracks has never been easier.
10-Band EQ with Pro-Level Customisation
Featuring a professional equaliser, users can tailor the settings and parameters to their personal preferences. It offers precise EQ gain adjustments and fine-tuned volume balancing for the left and right channels.
Built-in SMB Sharing Service
Easily share local files across devices in your local network without extra setup, enjoying convenient music sharing.
4GB DDR Memory + 32GB eMMC Storage
Large memory ensures stable multitasking, while 32GB of internal storage is perfect for holding high-quality audio files and system resources.
Supports M.2 NVMe SSD
The SSD slot on the bottom supports up to 4TB SSD, allowing you to expand your music library. High-speed interfaces ensure instant loading and playback, everything is smooth and stable.
Quad-Core ARM Cortex-A55 Processor
The powerful quad-core processor provides strong performance support, making decoding, operation, and multitasking smooth. Whether loading large files or processing high-spec audio streams, it handles them all effortlessly.
HDMI ARC
HDMI ARC allows direct transmission of TV audio to the DMP-A6 Gen 2.
HDMI Multi-Channel Output
Supports DSD Native and up to 5.1 channel output, combining music and home theatre for a thrilling surround sound experience.
Qualcomm Bluetooth 5.0 Module
With the Qualcomm QCC5125 chip, it offers low latency, high-quality transmission, and supports SBC and AAC codecs, ensuring perfect connectivity between your mobile device and player.
Compatible with Multiple Protocols
Supports NFS, SMB, WebDAV, and UPnP protocols, making it easy to extract music from home storage devices or personal computers with simple and intuitive operations.
Supports External USB CD-ROM
Revive your CD collection with support for both playback and ripping, easily digitising and preserving traditional CD albums.
Effective Media Management System
The DMP-A6 offers a robust media management system that enables editing operations for local hard drives and network storage like copying, copying, pasting, cutting, and deleting. The USB port can be configured as USB OTG, making it easy to connect the PC to DMP-A6 for local file management. Internal SMB sharing function allows sharing of media files from a connected mobile device or internal SSD (if installed) to other media playback devices, computers or mobile devices in the same network. This makes it possible for the DMP-A6 to be used as a network storage device to share audio sources at any time.
Seamless Integration
Supports HDMI ARC and TRIGGER function. HDMI ARC allows direct transmission of TV audio to the DMP-A6 Gen 2, reducing cable connections. TRIGGER enables devices to interact with each other, automatically powering on and off. Perfect for home theatre systems, offering a simple and efficient audio solution.
WOL (Wake-on-LAN) Feature
The DMP-A6 Gen 2 introduces the WOL (Wake-on-LAN) feature, allowing you to wake up the device via the app without manual intervention. This feature makes your music accessible anytime and anywhere, enhancing the convenience of your Hi-Fi experience.
*Requires a wired network connection.
Smart Control
Everything at Your Fingertips. Easily control via smartphone or tablet, managing your music library, adjusting settings, or selecting playback devices, offering a more personalised and user-friendly music experience.
