Description
Audio
Supported Audio File Formats MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS

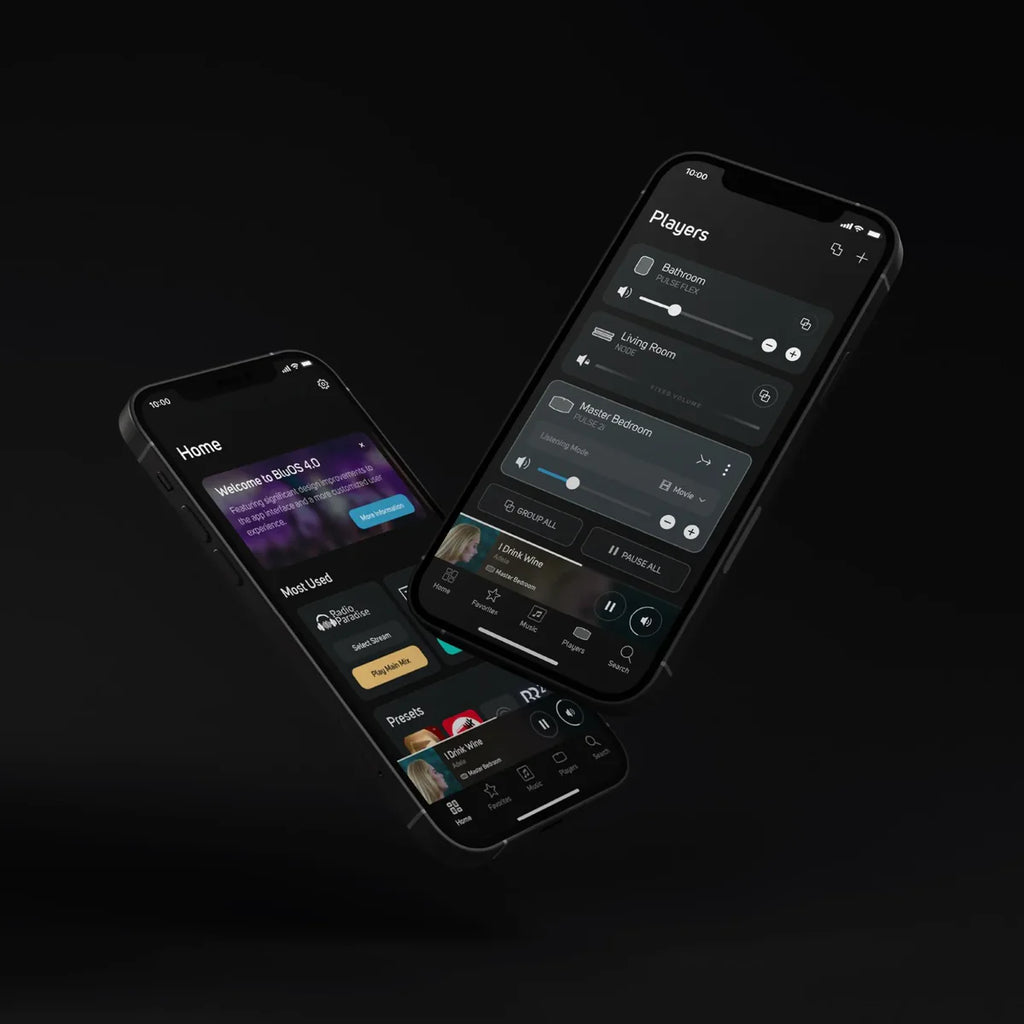

Audio Controls & EQ BluOS Control App
Amplification DirectDigital™
Supported Hi-Res Audio File Formats FLAC, MQA, WAV, AIFF, MPEG-4 SLS
Bit Depth 16-24
Rated Power Output 100W x 2 | 80W x 3 (8 Ohms)
Supported Multi-Channel Audio Formats Dolby® Digital
Signal-to-Noise Ratio 102dBA
IHF Dynamic Power 265W (4 Ohms) | 140W (8 Ohms)
Native Sampling Rates up to 192 kHz
DSD Support DSD256
Distortion THD+N, 0.005%
Software & integrations
Operating System BluOS
Music Services & Internet Radio 23+
3rd-Party Integrations AirPlay 2, Spotify Connect (also support for Spotify Lossless), Tidal Connect, Qobuz Connect, Roon Ready, Dirac Live Ready (available via future software update)
App Controller Operating System iOS, Android, Windows, macOS
Album Art Supported JPG, PNG
Control System Integrations Creston, Control4, RTI, Nice, URC, Lutron
Supported Network File Sharing Server Messsage Block (SMB) up to 200,000 files
Processor ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
Voice Control Integrations Amazon Alexa Skills
General
Finish Black/White; Matte Satin Paint
Generation 3
Included Accessories 120V AC Power Cord230V AC Power CordEthernet CableTOSLINK Optical to 3.5mm Mini AdaptorSafety/Warranty GuideQuick Setup GuideDirac Live Ready Info Card
Storage Environment -10°C to 50°C, 20% to 80% relative humidity
Product Dimensions 220 x 70 x 190 mm8.7 x 2.75 x 7.5 in1.9 kg / 4.18 lbs
Shipping Dimensions 295 x 295 x 110 mm11.6 x 11.6 x 4.33 in3.43 kg / 7.56 lbs
Operating Environment 0°C to 40°C
SKU/Version N331
User interface & control
Status Indicator LED x 2
Volume Control Buttons Touch Slider LED
Preset Buttons Touch LED x 5
Play/Pause Button Touch LED
Previous/Next Track Buttons Touch LED
Proximity Sensor Yes
Connections
Ethernet/LAN Ethernet RJ45, Gigabit 1000Mbps
Bluetooth Connectivity Two-Way (transmit & receive)
Bluetooth Quality Bluetooth 5.2 aptX HD
IR Optical Built In IR Sensor Built in - front panel with IR learning
Headphone Output 6.35mm Stereo; Bluetooth
USB IN Type A (Fat32, NTFS Formatted) - External Storage OnlyLocal Server Mode
Optical/Analog Input Toslink Optical, RCA Analog, 3.5mm Optical/Analog Combo
Subwoofer Output RCA x 1; Wireless to PULSE SUB+
IR Input 3.5mm Jack
HDMI Input HDMI eARC
Wi-Fi Built In WiFi 5 (802.11ac), dual-band
USB Audio USB Type C (PC input)
Speaker Terminals 5-Way Binding Post
