Description
• Proprietary fully-floating hybrid 2-stage Network + FPGA module with proprietary code
• 4 future-proof network protocols (modules). Available now:
– UPnP DLNA
– HQPlayer NAA
• Internal custom developed LAN switch (isolated)
• Pure Bit-perfect FPGA signal processing
• Uncompromising digital interface AQlink PRO (I2S protocol)
• Galvanically isolated output stage (upgradable)
• 2 separate low noise C-Core power transformers for network circuitry and digital decoding

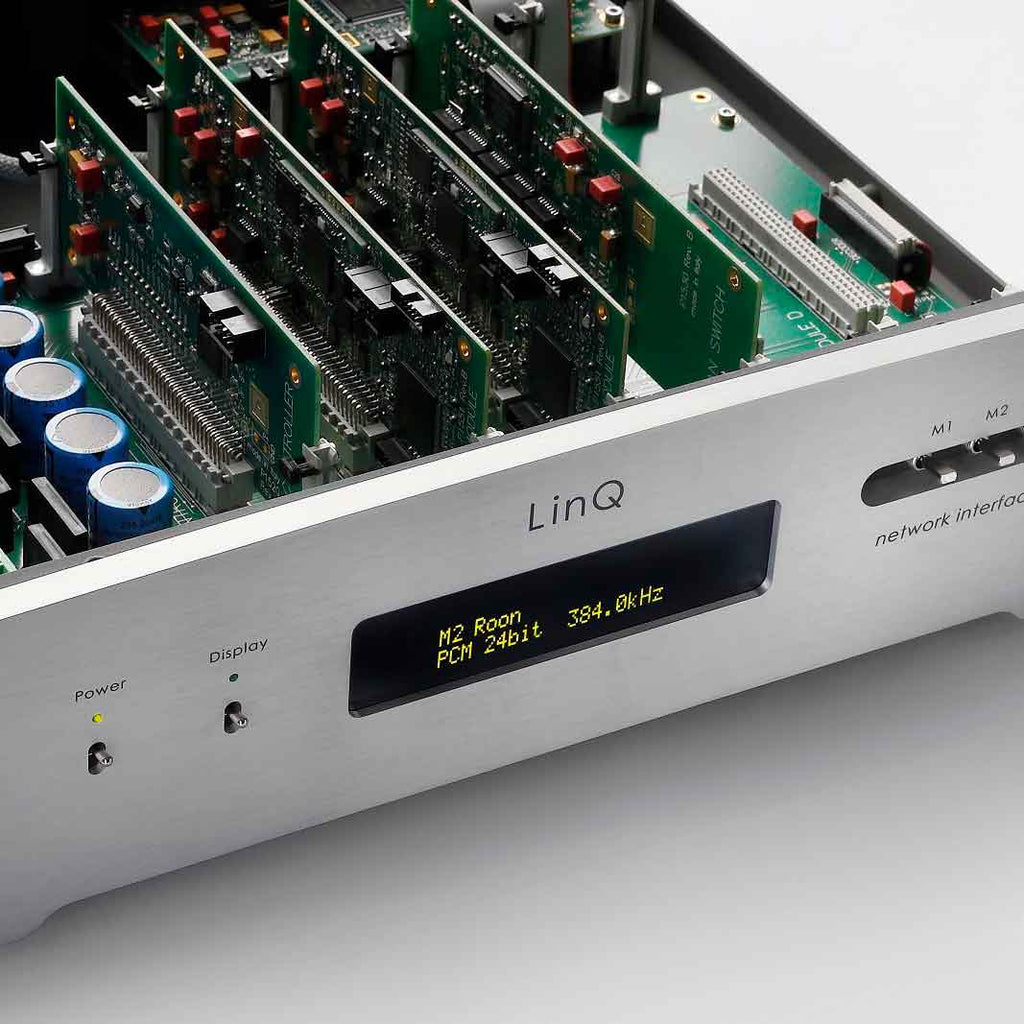

• MODULAR DESIGN with upgradeable multi board platform
• Qobuz, Tidal and other main streaming services supported
• Zero setup, direct access to the Network Module by key and IR5 remote
• High-quality parts

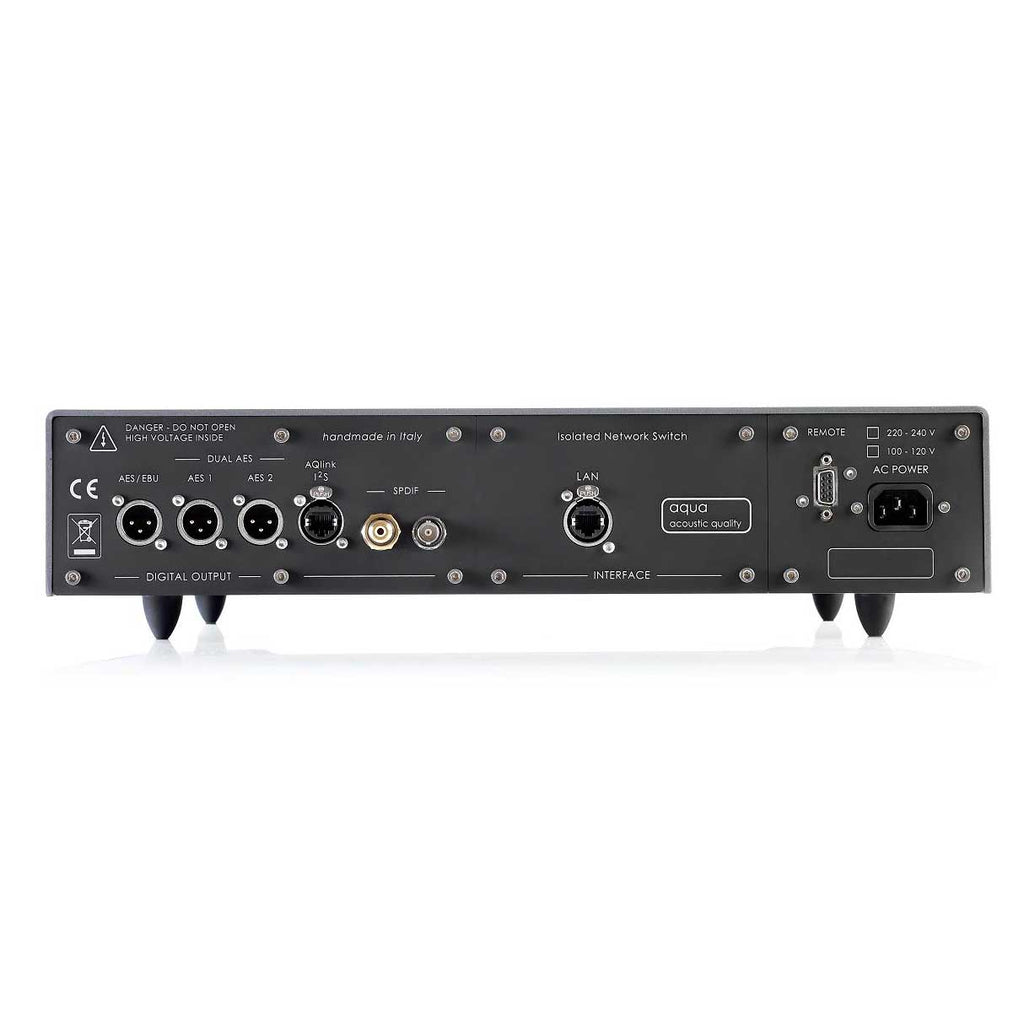

• Input:
– ETHERNET network | n. 1 standard RJ-45 connector LAN
No network configuration is required (DHCP system)
• Outputs:
– AQlink I2S | n. 1 Ethercon RJ-45 connector (PCM 32 bit 384kHz / DSD128 max)
– Dual-AES/EBU (IEC 60958) | n. 2 XLR 110 ohm connectors (PCM 24 bit 384kHz / DSD128 max)
– AES/EBU (IEC 60958-4) | n. 1 XLR 110 ohm connector (PCM 24 bit 192kHz / DSD64 max)
– S/PDIF (IEC 60958-1) | n. 1 BNC 75 ohm connector (PCM 24 bit 192kHz / DSD64 max)
– S/PDIF (IEC 60958-3) | n. 1 RCA connector (PCM 24 bit 192kHz / DSD64 max)

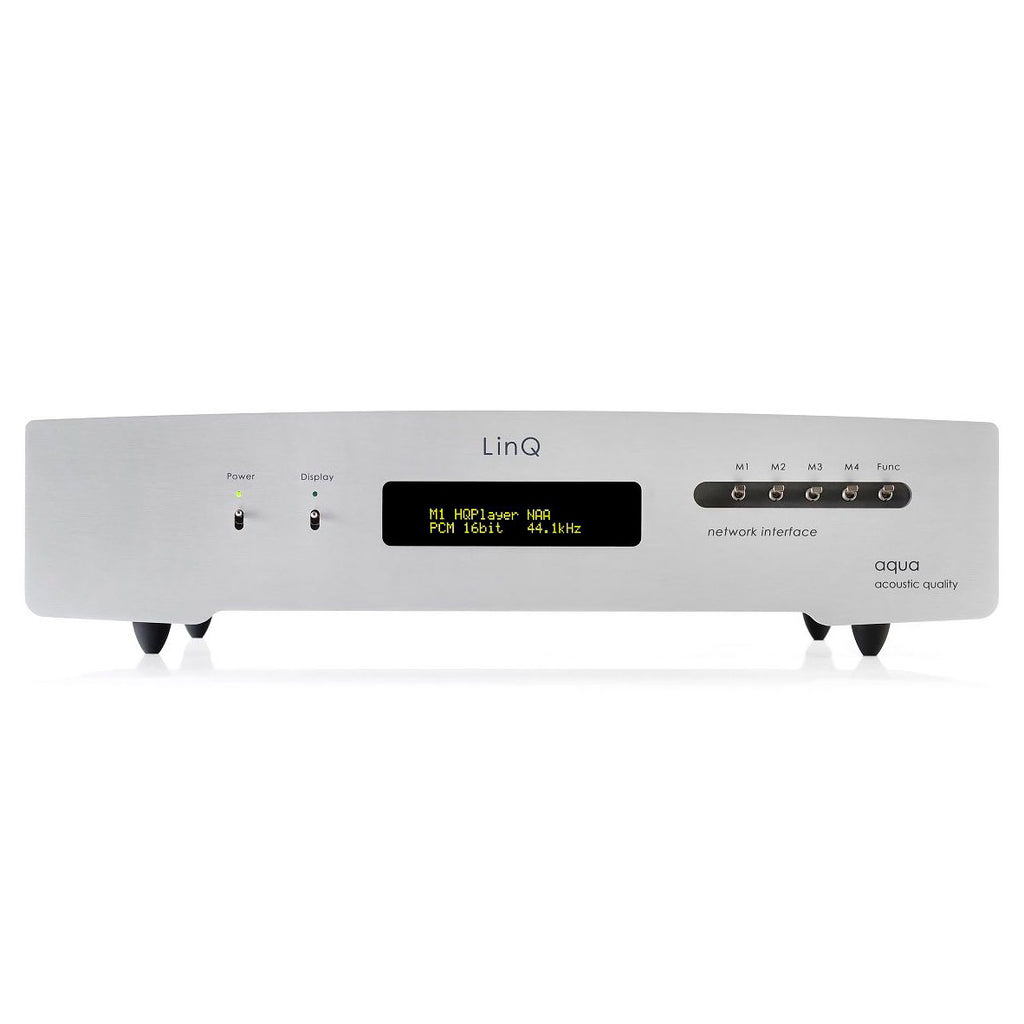

• OLED display with user off-selectable illumination
• RC5 IR remote controller (optional)
• Aluminium anti-resonant cabinet with Nextel
• Designed and handmade in Italy
