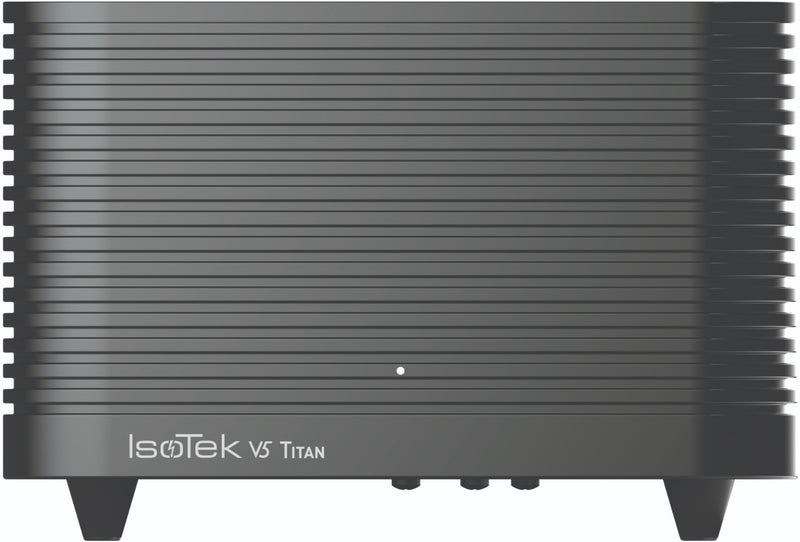

IsoTek V5 Titan

• Engineered for audio devices that don’t pull a constant amount of power. Think amplifiers, modern TVs, powered speakers, and active subwoofers. Basically, if your gear’s power use goes up and down, this is a good fit.
• RFI reduction 85dB (50 ohms standard), down to 5Hz
• Optimised power cleaning circuits effectively remove Common and Differential Mode mains noise
• 3 independent high current outlets for power amps, subwoofers, active loudspeakers and TVs etc.(16A)
• Easy reset RCBO fusing system
• 153’500A instantaneous protection, 75’000 continuous
• Fully star-earthed network
• Solid core Ohno Continuous Cast copper silver-plated internal wiring with FEP virtual air dielectric
• System Link outlet for extending the outlets and maintaining a starred earth reference
• Supplied with IsoTek’s award winning EVO3 Premier power cable (1.5m)
• Provides up to 3’680 watts (16A/230V) or 1’840 watts (16A/115V) of clean power, ensuring optimal energy delivery for your equipment
• UK, EU, US, AU & CH outlets available

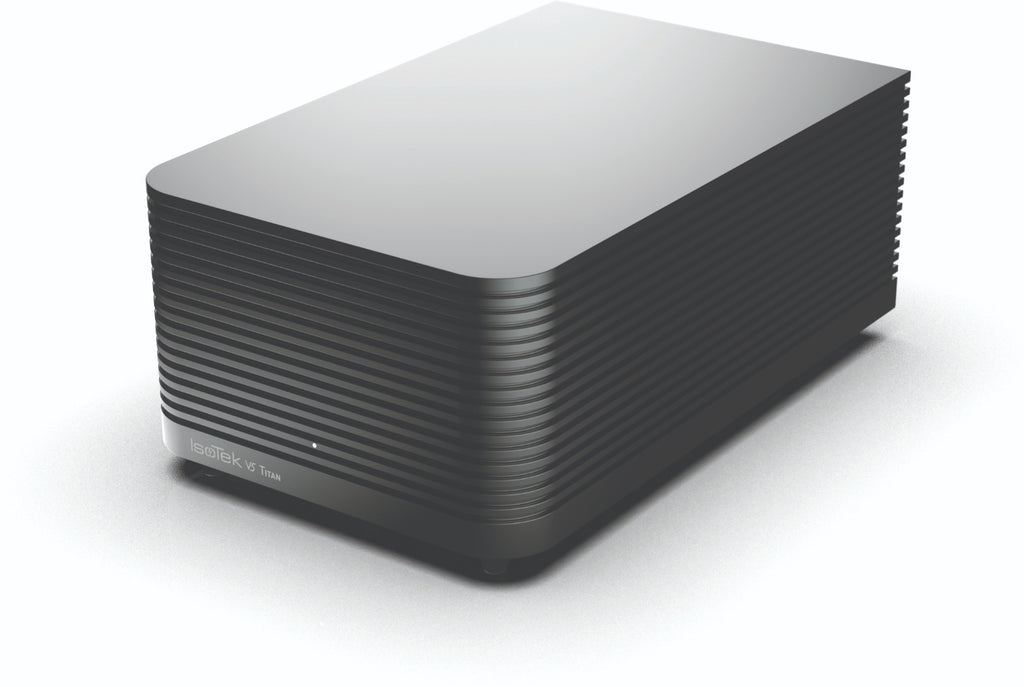

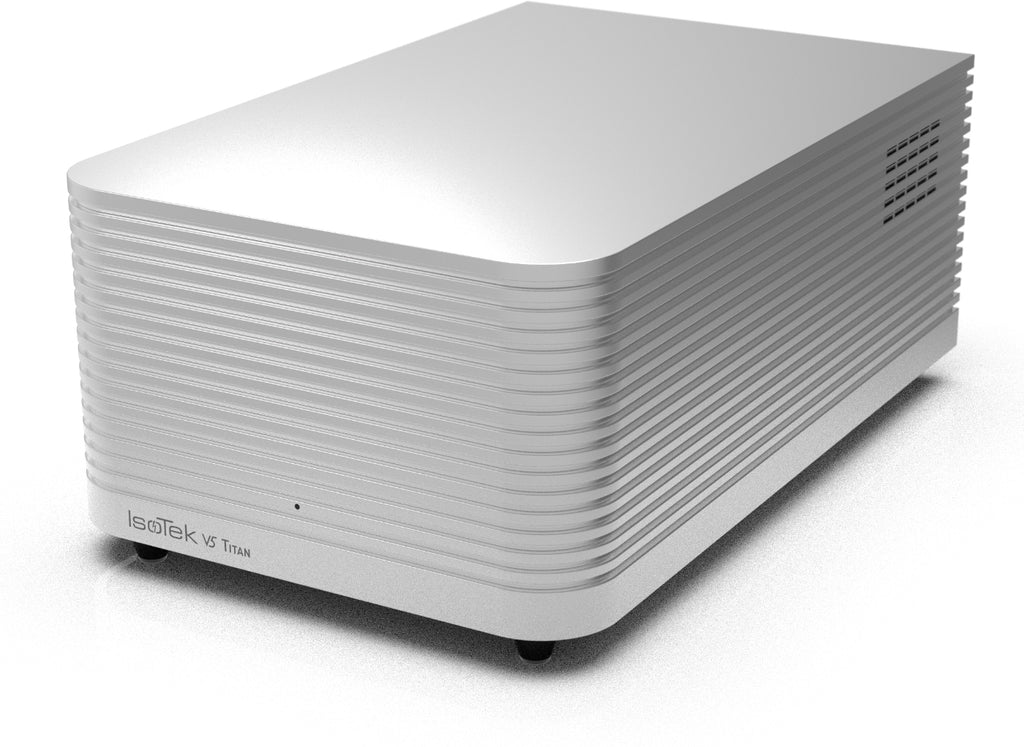

IsoTek’s iconic Titan high current power cleaning system has been dramatically improved and boldly restyled. The V5 model is not only state of the art in its visual design, appearing hewn from a single block of aluminum but harness the latest technical innovations from a leading brand in the specialist field of power systems for audio and AV.

The V5 Titan is a dedicated high current power cleaning and distribution system delivering absolute power. The product measures 220mm in width, 350mm deep and 147mm high. It features 3 independent outlets each one with its own dedicated power cleaning network. Thus, Titan is three high current, low impedance power cleaning networks in a single half width chassis. Both Differential Mode and Common Mode noise are dramatically reduced. Cross contamination of connected components is also kept to a minimum due to the multiple power cleaning stages for each output socket. Most power filters join output sockets together, running each in series. This is an error as Differential Mode Noise created by your connected electronics will cross contaminate from one output socket to the next.

The electrical architecture and design of the V5 Titan is dramatically improved. PCB design and topology has been reworked and now offers over 50% improved amperage and decreased resistance. Unique critical (bespoke) components have better overall tolerances with improved inductance and current handling. The new circuit offers twice the inductance, with 80% increase in current leading to more open sound staging, micro dynamics and detail with more immediate timing. Dramatically improved Direct Current Resistance (DCR) has been applied throughout the design. Part of the IsoTek goal being to reduce DCR bringing performance closer to the zero Ohms ideal, V5 Titan is vastly improved compared to its predecessor.

These technological improvements result in the V5 Titan delivering absolute power, unrestricted current delivery within what the power company can supply, and regulations allow. Generally for power amplifiers or high wattage electronics IsoTek provides output which offers extremely low impedance and low DCR, this completely eliminates (within the concepts of power filtering) any possibility of current restriction and enhances dynamic range, the impedance of the chain back to the power station being far larger. When power is contaminated dynamic range is reduced. This is exact like the song of birds being drowned out by the pollution of traffic noise. It is not that the bird song wasn’t audible it was masked by unnecessary background interferences.

The IsoTek absolute power circuits offer greater perceived dynamics. The dynamic range in music being the relationship between the loudest and the quietest produced sound combined with a lowering of noise floor, power comparison or in other words dynamic range. To maintain high levels of amperage and extraordinary low levels of resistance across the PCB up to eight times the general standard of copper is used prior to pure silver plating.

Source component filters have a moderate amount of DCR to aid in the performance of increasing the electrical separation between connected loads. The circuit thus recognises the huge amounts of Differential Mode noise produced by connected equipment and acts to reduce and nullify Differential Mode cross contamination between the connected electronics.

See Continuous Absolute Power.

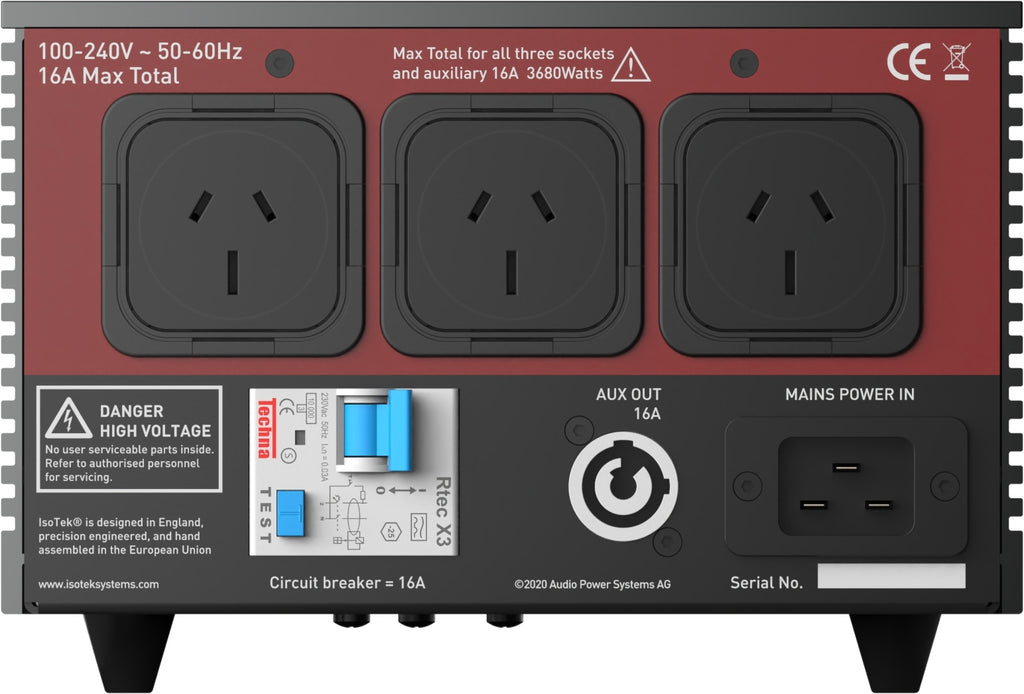

The V5 design features an RCBO fusing system rated at 16A for the three high current power output sockets these deliver 3’680W at 230V or 1’840W at 115V.

This fusing system is a substantial upgrade over a standard ordinary fuse due to contact area. By shear virtue of its electrical function a standard fuse must have a very thin wire, this being also true of expensive audiophile grade gold plated versions. The IsoTek fusing system offers an increased contact area at least 1000 times better, and a connection which is consistently strong.

KERP© (Kirchhoff’s Equal Resistance Path) ensures equal resistance and equal power delivery to all outlets. The internal wiring is of the highest standard – ultra pure Ohno Continuous Cast copper solid core conductor strands with silver-plating offers low resistance and high amperage. A Fluorinated Ethylene Propylene (FEP) helix is wound around the conductor before an extruded FEP dielectric protects the conductor and creates a Virtual Dielectric of Air dielectric (FDA). This construction gives unrivalled performance and gives the ultimate low resistance, high performance internal power delivery system. Furthermore, 153’000A of instantaneous protection is provided, safeguarding valuable equipment via IsoTek’s unique sequential and repeatable protection system.

The internal wiring of IsoTek products synergizes with the range of IsoTek power cables. One critical but overlooked area, is maintaining commonality of design and material properties through an audio wiring loom, be it signal carrying cables or your power cable network.

V5 Titan also contains a System Link outlet, this is designed to connect multiple units together, maintaining a stared earth reference, and preserving the need for multiple wall outlet sockets.

V5 Titan is high quality design yet highly functional and is an excellent upgrade for a complete audio system. IsoTek’s award winning Premier power cable is also included.

IsoTek was born with a singular aim: to create a better solution to the problem of poor mains quality, which restricts the performance of audio systems, through rigorous research and genuine innovation.

Today, our products supply clean, fully optimised power to all manner of audio and AV equipment, from amps and source components to TVs and projectors, enhancing performance and protecting valuable equipment.

The company’s founder and managing director is Keith Martin, a man whose vision has led to hundreds of awards from respected audio critics worldwide.

“IsoTek treats mains-related problems with a seriousness that has to be seen and heard to be believed”
Hi-Fi World

“IsoTek is the leader in mains conditioning products”
Hi-Fi News

“IsoTek is the UK’s biggest name in mains filtration”
Hi-Fi Choice

“IsoTek gets (understands) power, so it’s logical that IsoTek is the go-to company for power”
Hi-Fi+

Clean Power, pure sound

The first input into any audio or home theater system is electricity, it is the ‘raw material’ from which the electronics you own need to function. The quality of this first input will affect performance either positively or negatively.

In today’s world, mains electricity is increasingly compromised by numerous distortions that degrade the performance of high-end audio, home theater, and network systems. As the number of electronic devices grows and demand on power supply intensifies, the quality of the electricity reaching your equipment steadily deteriorates. This declining power quality introduces unwanted noise and interference that rob your system of clarity, dynamics, and musical purity. To unlock the full potential of your audio and visual investments, ensuring clean, stable, and distortion-free power delivery has never been more critical.

The escalation of mains-borne ‘noise’ means that the need for IsoTek’s clean-power technology has never been greater. ‘Differential mode noise’ is especially exacerbated by the switch-mode power supplies that are common in many modern devices, from computers to kitchen appliances. ‘Common mode noise’ is ever-increasing thanks to wireless networking in the home, with mobile phones, wi-fi and Bluetooth bathing us in a sea of airborne interference.

The quality of electricity we use to feed our audio, home theater, and network systems has a profound effect on performance.

Why IsoTek?
IsoTek is an English company making award-winning power optimisation products for hi-fi and home cinema systems.

Our highly specialised mains conditioners actively clean the power obtained from your wall sockets before it reaches your hi-fi or audio visual system, and our range of power cables further enhance this improvement. Our solutions cover a wide range of systems, delivering significant upgrades in performance at competitive prices.

With over 250’000 satisfied customers across 55+ countries, IsoTek is a globally trusted leader in audio power optimization. Renowned for excellence, our products consistently receive top accolades from leading audio and AV publications worldwide.

We are recognised as the leader in clean-power technology, a fact reinforced by the highly respected consumer electronics brands that are using IsoTek in the development and/or demonstration of their products, including Arcam, Denon, Genesis Advanced Technologies, Innuos, Kerr Acoustic, Marantz, Monitor Audio, Nordost, Onkyo, Piega, Pioneer, PMC, Primare, Roksan and TEAC Esoteric. All IsoTek products are designed for purpose, manufactured in Europe and built to last.

IsoTek’s unique technologies enhance sound and picture quality by filtering mains electricity and regulating its distribution, delivering pure and stable power to audio and AV equipment.

Our products also deliver unrivalled protection from damage caused by lightning strikes and power surges, and extend the lifespan of valuable electronic components.

From the entry-level Discovery range to the groundbreaking Ultimate series, IsoTek creates award-winning products to suit every system and every pocket, all uniquely effective in removing both differential mode and common mode noise.

The improvements that IsoTek components bring to sound quality are immediate and profound. The noise floor drops and the sound gains greater focus, with reduced grain and improved clarity. Bass is tighter and better defined, treble gains more space and ‘air’, and the overall musical performance appears more solid and dynamic, and hence more ‘real’. In AV systems, picture quality is similarly enhanced, with richer colours, improved depth and greater definition. Discover IsoTek and unleash your system’s full potential.

The power to perform
The first input into any audio or AV system is electricity. It flows through the system, utilised by each component in turn to create the signal that eventually moves the speakers’ drive units or delivers the pixels on-screen. What we see and hear is ultimately fashioned from, and by, mains electricity – it is the ‘raw material’ from which the ‘art’ is created.

The mains supply is distorted by numerous factors as it travels from power stations to be distributed throughout our homes, eroding the performance of high-quality audio and AV systems. As the electronic devices we use proliferate and the demand for electrical power intensifies, the quality of the electricity we feed our systems continues to slide.

The escalation of mains-borne ‘noise’ means that the need for IsoTek’s clean-power technology has never been greater. ‘Differential mode noise’ is especially exacerbated by the switch-mode power supplies that are common in many modern devices, from computers to kitchen appliances. ‘Common mode noise’ is ever-increasing thanks to wireless networking in the home, with mobile phones, wi-fi and Bluetooth bathing us in a sea of airborne interference.

The quality of electricity we feed our audio and AV systems has a profound effect on performance, and that’s where IsoTek’s unique clean-power solutions come in. Without IsoTek, you are only accessing around 80 per cent of your system’s full potential, at best.

DC on the power grid
So called ‘DC on the mains’ is an increasingly common issue affecting the quality of your home’s power supply. Caused by a variety of everyday electronic devices around your home, that are connected to the power grid. These items generally run a diode electrically in series, for example, switch mode power supplies (SMPS), dimmer switches, hair dryers and coffee machines. But it doesn’t end there, solar panels on the roof, elevators, and fast charging stations for electric cars cause even more DC issues. These could be in your house or your neighborhood, or even further down the road. Strictly speaking the problem with DC on the mains as it is referred to, is the imbalance of the mains sine wave on the zero volts line, technically speaking it is not really a mains noise, but nevertheless bad power. It can cause considerable mechanical vibration within products (not only in amplifiers but all electronics) which will dramatically affect performance.

It is the strangest of problems on the AC line, which is a quirk of magnetic circuit design. A simple hairdryer can cause massive noise in big amplifier transformers. IsoTek has developed a series of devices called “Syncro” that incorporate unique DC-cancelling electronics that rebalance the mains sine wave on the zero volts line, to dramatically reduce/silence transformer hum; the circuit synchronizes the mains supply to provide a perfectly symmetrical sine wave, which also delivers significant improvement when used with any audio-, AV- or network electronics.

Differential Mode
Differential Mode mains noise is created by all electrical appliances – everything with a power supply, in fact. This includes your microwave oven, your television and your computer, as well as every hi-fi component you own.

Common Mode
Common Mode mains noise is often referred to as RFI – transmitted frequencies that surround us but we cannot see. For example, imagine how much data is transmitted by smartphones and tablets; cheap power cables act as aerials for these unwanted frequencies.
