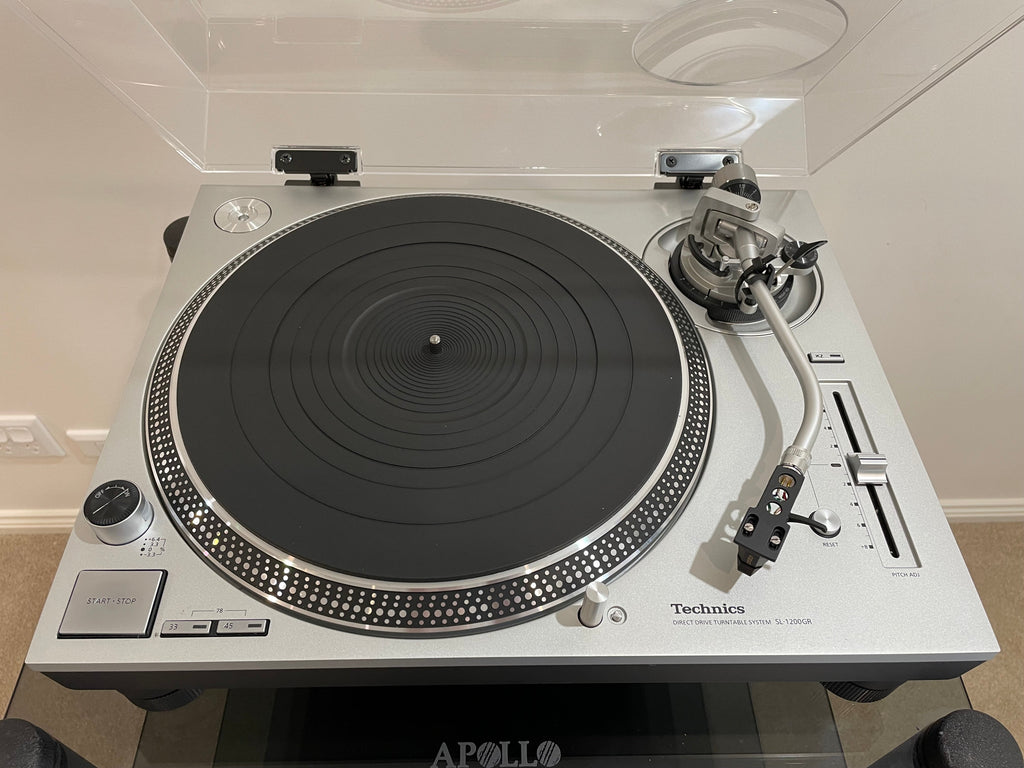

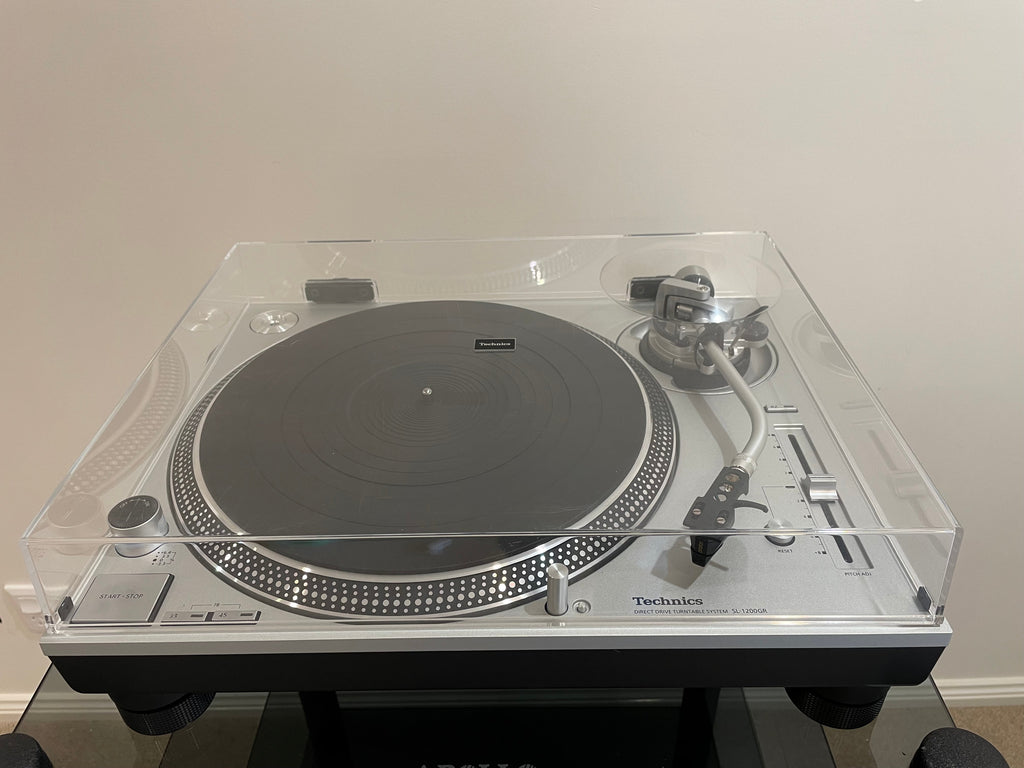

Preloved Technics SL-1200 GR Grand Class w Ortofon Black Cartridge

Roll over image to zoom in

Preloved Technics SL-1200 GR Grand Class w Ortofon Black Cartridge

Name: Preloved Technics SL-1200 GR Grand Class w Ortofon Black Cartridge
Brand: Direct Drive Turntable
SKU: Tech-SL1200GR-JK23
Price: 2500.0 AUD
Availability: InStock

Direct Drive TurntableSKU: Tech-SL1200GR-JK23

Share this product

Ortofon Black Cartridge fitted. Excellent condition, very little use over 12 months. No packaging. 3 month warranty included.

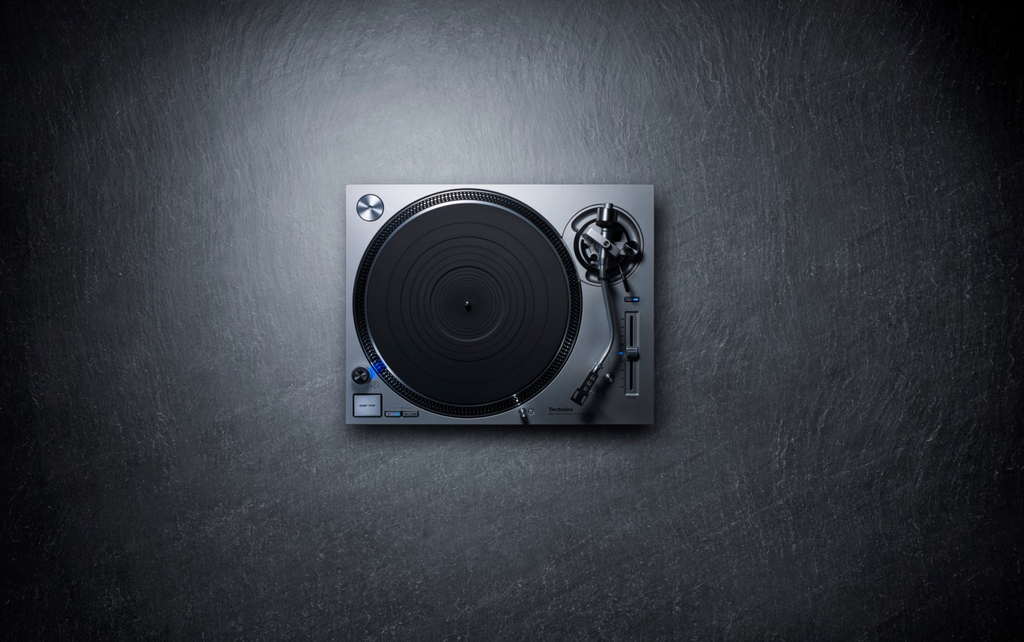

The SL-1200GR Grand Class Turntable features a coreless direct drive motor achieving stable rotation, a rigid two-layer turntable platter, high-sensitivity tonearm and a two-layer cabinet construction providing high vibration damping characteristics and long-term reliability.

Features

Fusing Technics' traditional analogue and leading-edge digital technologies
Launched in 2016, the SL-1200G combined Technics‘ traditional analogue technology and advanced digital technology, while redesigning parts throughout. Its outstanding performance literally rocked the hi-fi market and redefined the reference for direct-drive turntables. Parts that were inherited from the SL-1200G were newly developed for the SL-1200GR, beginning with the coreless direct-drive motor and precise motor control technology that eliminated the cogging that originated from rotation irregularity, and including a low-vibration, high-rigidity platter and high-sensitivity tonearm. By these measures, the level of performance clearly outperforms the usual standards of its class. The SL-1200GR invites more audio enthusiasts to enjoy music with the rich, robust sound of analogue records.

Coreless Direct-Drive Motor Achieving Stable Rotation
In 1970, Technics commercialized the world‘s first direct-drive turntable, and the system took the world by storm. Unlike belt-drive and other systems, direct-drive systems rotate the motor at low speed and directly drive the platter, thus providing numerous advantages, such as the almost complete absence of degradation in S/N ratio due to motor vibration and deceleration mechanisms, as well as high reliability over a long period time because of not requiring parts replacement.
And in 2016, Technics developed the twin-rotor, surface-facing, coreless direct-drive motor with rotor magnets placed on both sides, thereby eliminating the rotation irregularity of the motor, referred to as "cogging," which was a unique issue for direct-drive systems. This motor was adopted for the SL-1200G, which once again drew a significant response in the hi-fi market. The SL-1200GR inherits the same design philosophy with the new development of a single-rotor, surface-facing, coreless direct-drive motor, resulting in the elimination of cogging.

High-precision Motor Control for Ideal Rotation Conditions
The rotation control, which verifies and corrects the precision of the motor, uses the latest motor control technology cultivated in the development of Blu-ray disc devices, just as that used by the SL-1200G. Sine waves stored in ROM are used for the control waveforms at constant speed, and this achieves smoother and more stable rotation compared with using the simple sine wave generation with an external coil as in the conventional SL-1200MK5. In addition, the electrical circuitry has had tuning performed so that the newly developed motor of the SL-1200GR achieves maximum performance. The starting torque achieves 2.2 kg x cm with only a single rotor. The same startup time of 0.7 s (at 33 1/3 rpm) as the SL-1200G has been achieved.

Coreless Direct-Drive Motor Achieving Stable Rotation
High-precision Motor Control for Ideal Rotation Conditions
Pursuing Rigidity and Vibration Damping Characteristics
Tonearm Achieving High Initial-Motion Sensitivity
High-quality Terminals for Both Sound and Appearance
High-rigidity Body and High-damping Silicon Insulators for Smooth Sound and Isolation from Various Vibrations

Size & Weight
Height 173mm
Width 453mm
Depth 372mm
Weight 11.5kg

Turntable section

Type
- Direct Drive Manual Turntable
Turntable Speeds
- 33-1/3, 45 and 78 r/min
Adjust Range
- ±8 %, ±16 >#/span###
Starting Torque
- 2.2 kg-cm
Build-up Characteristics
- 0.7 s. from Standstill to 33-1/3 r/min
Wow And Flutter
- 0.025 % W.R.M.S.
Rumble
- 78 dB (IEC 98A weighted)
Turntable Platter
- Aluminium diecast Diameter : 332 mm Weight : Approx. 2.5 kg (Including rubber sheet)

Tonearm Section

Type
- Universal Static Balance
Effective Length
- 230 mm
Overhang
- 15 mm
Tracking Error Angle
- Within 2° 32' (at the outer groove of 30 cm record) Within 0° 32' (at the inner groove of 30 cm record)
Offset Angle
- 22°
Arm-height Adjustment Range
- 0 - 6 mm
Stylus Pressure Adjustment Range
- 0 - 4 g (Direct Reading)
Head Shell Weight
- Approx. 7.6 g
Applicable Cartridge Weight Range
- (without auxiliary weight) 5.6 - 12.0 g 14.3 - 20.7 g (including head shell) (with auxiliary weight) 10.0 - 16.4 g 18.7 - 25.1 g (including head shell)
Cartridge Mounting Dimension
- JIS 12.7 mm (1/2") interval
Head Shell Terminal Lug
- 1.2 mmφ 4-pin terminal lug

Terminals

Audio Output
- PHONO (Pin Jack) x 1, EARTH TERMINAL x 1

General

Power Supply
- AC 110 - 240 V, 50 / 60 Hz
Power Consumption
- 11 W Approx. 0.2 W (Standby)
Dimensions (W x H x D)
- 453 x 173 x 372 mm
Weight
- Approx. 11.5 kg
Accessories
- Turntable, Dust cover
