Innuos ZENmini Mk3

Name: Innuos ZENmini Mk3
Brand: Gateway Server
Price: 3880.0 AUD
Availability: InStock

Gateway Server

Storage: 1TB

optional power supply: added

Variant

Price:

$3,880

Quantity:

Share this product

A gateway server with all the full benefits of innuOS, now with improved connectivity and an upgraded path for even greater flexibility. Ideal for simple integration into multi-room systems or for those making the first step to a dedicated audio server.

Looking for a tidy solution for all your CDs and the files laying around on the computer? Need an easy way to stream and listen to all your favourite music? Now there’s a simple way to store, manage and play all of it: the ZENmini.

ZENmini Mk3 & LPSU gets high marks from Darko Audio! The combination receives praise for its performance and value, 'Whether used as a transport or via its analog output, the double-stack offers gratifying sound with a particularly strong sense of spaciousness – I can’t think of anything in this price class which can touch it in that regard.' 'Combined with the features and functionality on offer, we end up with a rather compelling device which represents "trickle down" technology at its very finest'

Convenient Design

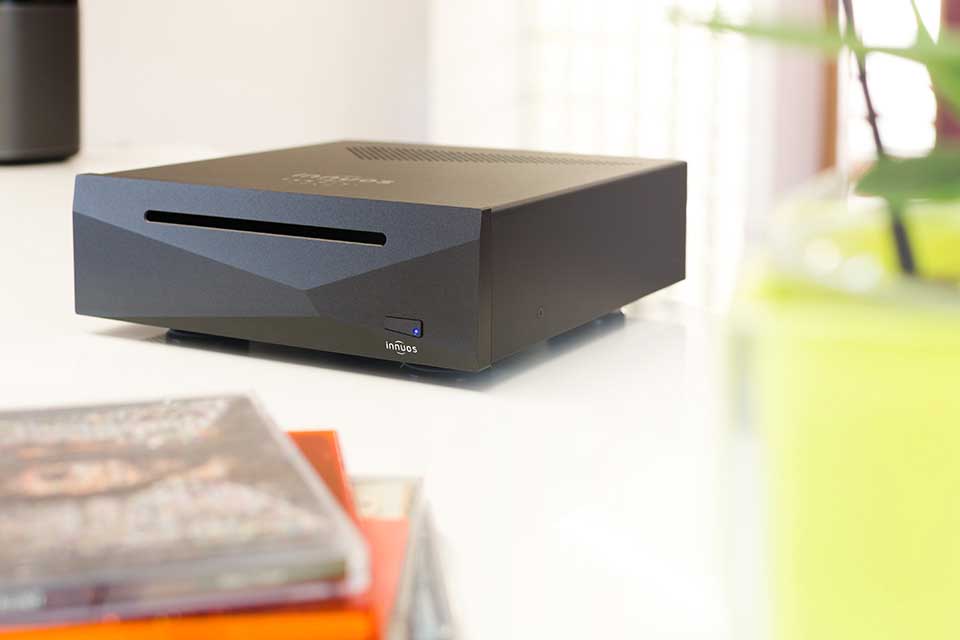

With its compact footprint, low-power efficiency, quiet operation and range of connectivity, the ZENmini is a convenient and discreet music server for all your Digital Audio needs – from CD ripping and purchased downloads to streaming services and internet radio.

Hi-Fi Engineering

The ZENmini offers more than just casual usage. Floating optical and storage drives paired with a custom motherboard and premium components offer far greater musical performance than conventional computers and NAS drives.

Perfect CD Player replacement

Featuring additional Optical and Coaxial digital outputs as well has a high-resolution 24bit/192KHz Digital to Analog Converter (DAC). This means you can now connect directly to all your favourite devices such as Soundbars, AV Receivers or Integrated Amplifiers the easy way.

Powerful Performer

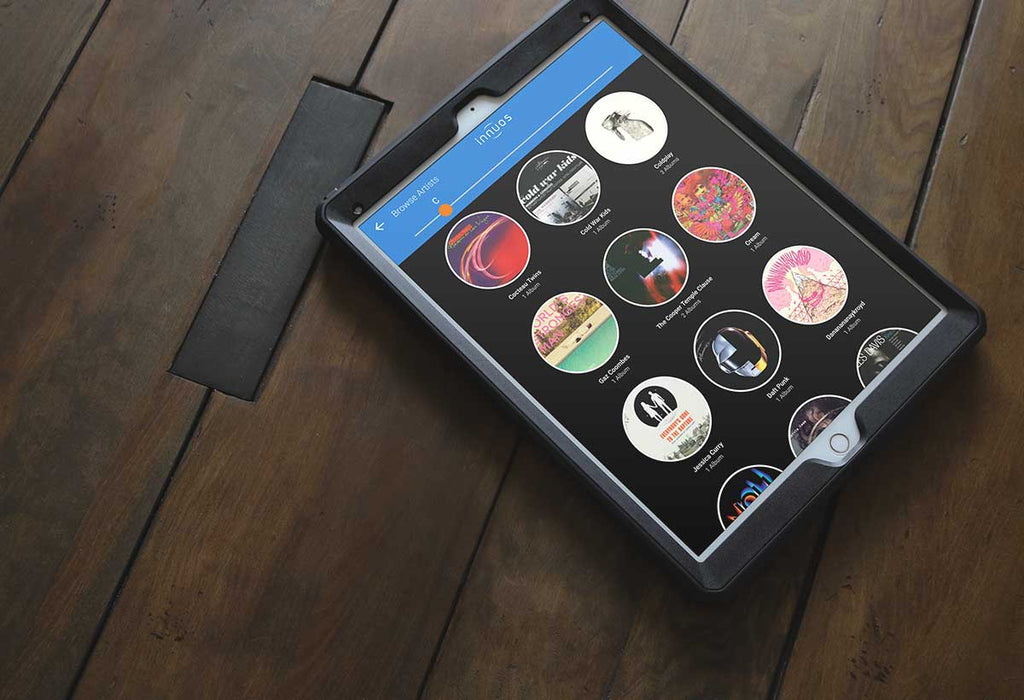

Using our own exclusive innuOS operating system, our servers are configured and optimised from the ground up for the perfect balance of performance and simplicity. Control your library from the comfort of your tablet or smartphone – no computer required.

Audio Outputs

Digital Output:

USB 2.0 supporting USB Audio Class 2, DoP, Native DSD and MQA
Coaxial S/PDIF up to 24bit/192KHz
Optical S/PDIF up to 24bit/192KHz

Analogue Output:

RCA Analogue up to 24bit/192KHz

Connectivity

Ethernet: 2 x rear panel RJ45 – Bridged Gigabit Ethernet

USB: 4x USB 3.0

Formats

CD Formats: Red Book

Disc Compatibility: CD, CD-R, CD-RW

Audio format for stored CDs: FLAC (zero compression), WAV

Audio Formats Supported for streaming and playing: WAV, AIFF, FLAC, ALAC, AAC, MP3, MQA on supported DACs

Sample Rates

Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz. 192kHz, 352.8KHz, 384KHz , up to DSD128 via DoP, Native DSD on selected DACs

Bit Depths: 16bit, 24bit, 32bit

User Control Interfaces

Web Interface: Web Browsers from iOS, Android (4.0 and up) or up-to-date Windows and OS X browsers

Mobile: App for iPhone/iPad, Android and Windows 10

Hardware

CD/DVD drive: TEAC Slot-loading drive

Hard Drive: WD Red HDD

CPU: Intel Quad Core N4200

Memory: 4GB DDR3

Streaming and CD Storage

UPnP/DLNA: Integrated UPnP Server

Streaming Services: Qobuz, Tidal, Radio Paradise, Internet Radio

Roon Compatibility: Roon Core and Roon Endpoint

Average CD Storage Time: 5 minutes

CD Metadata: FreeDB, MusicBrainz, Discogs, GD3

Compatible Music Systems: Sonos Multi-room Wireless Music System

DLNA/UPnP compatible streamers

USB DACs complying to USB Audio Class 2
USB DACs supporting DSD over DoP protocol
Selected USB DACs supporting Native DSD

Requirements

Network

Internet connection to access album metadata when storing CDs, Internet Radio, Streaming Services and software updates
Network router with at least one available ethernet port
Premium subscription required for some streaming services such as Spotify, Qobuz and Tidal

Recommended App (USB Connection Only):

iPeng 9 (iOS)
OrangeSqueeze (Android)
Squeeze Control (Windows 10)

Power

Mains Supply: Low ripple Power Adapter, 12V 5A, CEC Level V efficiency

Power Consumption: 10W when idle, 15W peak

Physical

Dimensions: 215mm x 245mm x 75mm (W x D x H)

Weight: 4,5 Kg

In the box:

Innuos ZENmini Mk3 Music Server
AC/DC Power Adapter
Mains Cable
2m Ethernet Cable
Getting Started leaflet

Innuos was founded in 2009 in the United Kingdom with the vision that you don’t need to sacrifice sound quality nor be a technology wizard to enjoy the convenience of Digital Music at your fingertips. This vision can only be achieved through the combination of three core principles:

PERFECT SYNERGY BETWEEN HARDWARE AND SOFTWARE

The multi-disciplinary team at Innous combines expertise in Computer Hardware, Audio Hardware, Networking and Software Engineering to create our products end-to-end.

CUSTOMER-DRIVEN RESEARCH AND DEVELOPMENT

By working closely together with end users and partners alike, Innous really understands what different customers require in a music solution. This has been driving research and development since day one.

OPEN PLATFORM

Digital Audio is a fast-evolving area, with new products being constantly introduced in the market. Instead of designing closed solutions, Innous builds their products to be open, allowing integration with the most popular Hi-Fi and Multi-room products in the market.
